SKU: COM09T-MB

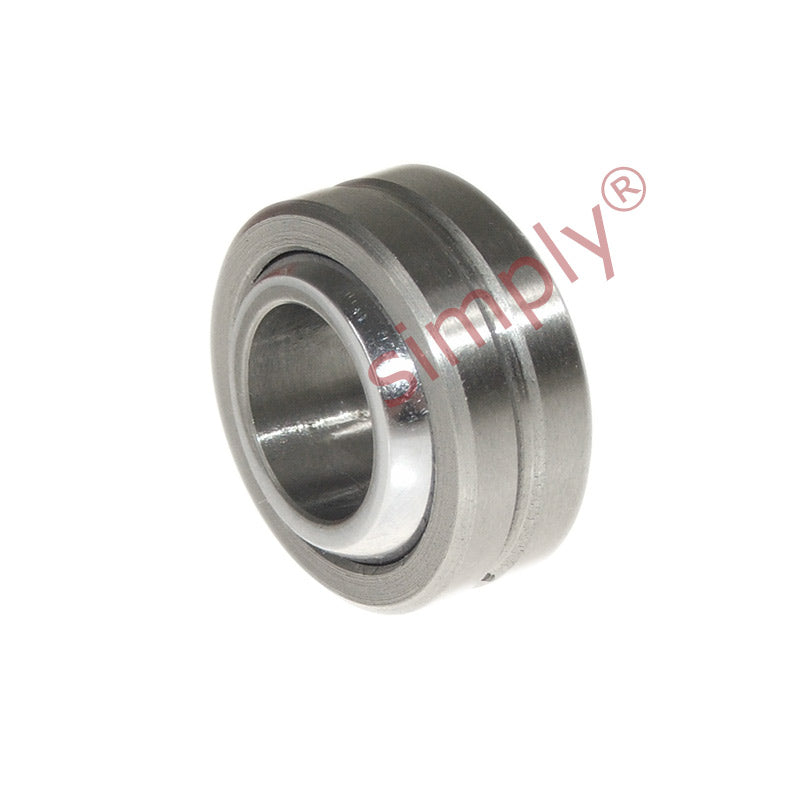

COM09T Branded PTFE Lined Imperial Spherical Plain Bearing 9/16 inch Bore

Name: COM09T Branded PTFE Lined Imperial Spherical Plain Bearing 9/16 inch Bore
Brand: Major Brand
SKU: COM09T-MB
Price: 32.02 CAD
Availability: InStock

$32.02 ex VAT

Sale Sold out

In stock

Price Break

10+ $15.12

19+ $14.27

29+ $14.10

39+ $13.93

49+ $13.76

74+ $13.59

99+ $12.74

199+ $12.58

249+ $12.41

499+ $12.24

999+ $11.90

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 14.29mm = 0.563 (9/16) inch
Outside Diameter:: 27.78mm = 1.094 (1-3/32) inch
Width:: 11.11mm = 0.437 (7/16) inch

Technical

b	9/16 inch
w	9/16 inch
h	7/16 inch
D	1-3/32 inch
O	0.71 inch
Static load	73967 N
