• COM05T PTFE Lined Imperial Spherical Plain Bearing 5/16 inch Bore
1 1

SKU: COM05T-EU

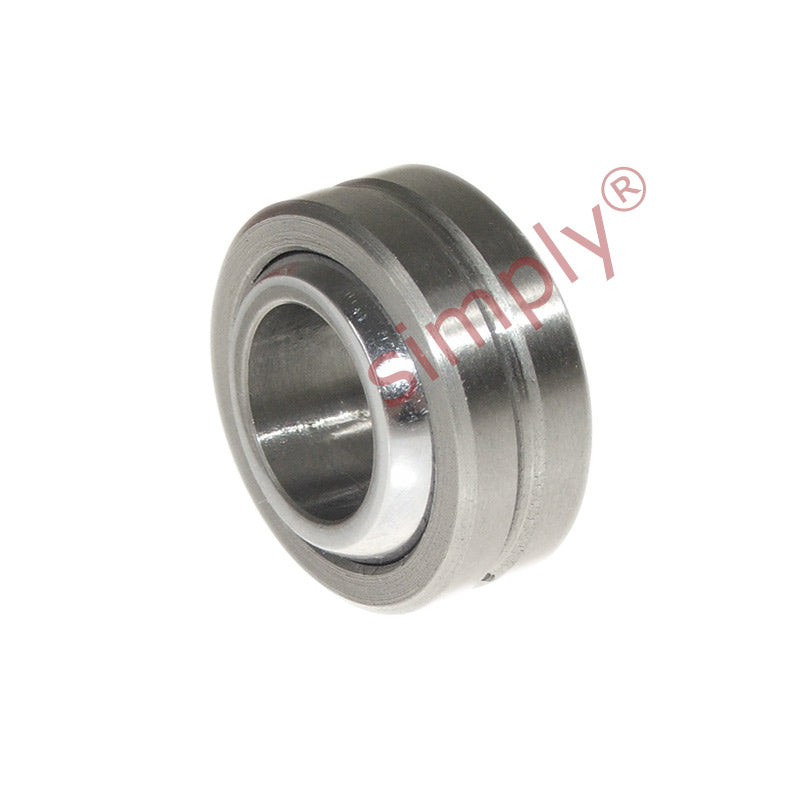

COM05T PTFE Lined Imperial Spherical Plain Bearing 5/16 inch Bore

COM05T PTFE Lined Imperial Spherical Plain Bearing 5/16 inch Bore
$11.91 ex VAT
$11.91 ex VAT
Sale Sold out

In stock

Price Break
10+ $5.63
19+ $5.31
29+ $5.25
39+ $5.19
49+ $5.12
74+ $5.06
99+ $4.74
199+ $4.68
249+ $4.62
499+ $4.55
999+ $4.43
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
7.93mm = 0.312 (5/16) inch
Outside Diameter:
19.05mm = 0.75 (3/4) inch
Width:
7.14mm = 0.281 (9/32) inch

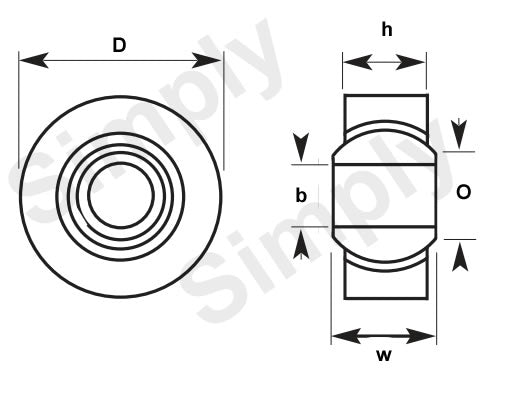

Technical
b 5/16 inch
w 3/8 inch
h 9/32 inch
D 3/4 inch
O 0.419 inch
Static load 28800 N
