SKU: CM-UCFL205D1-NTN

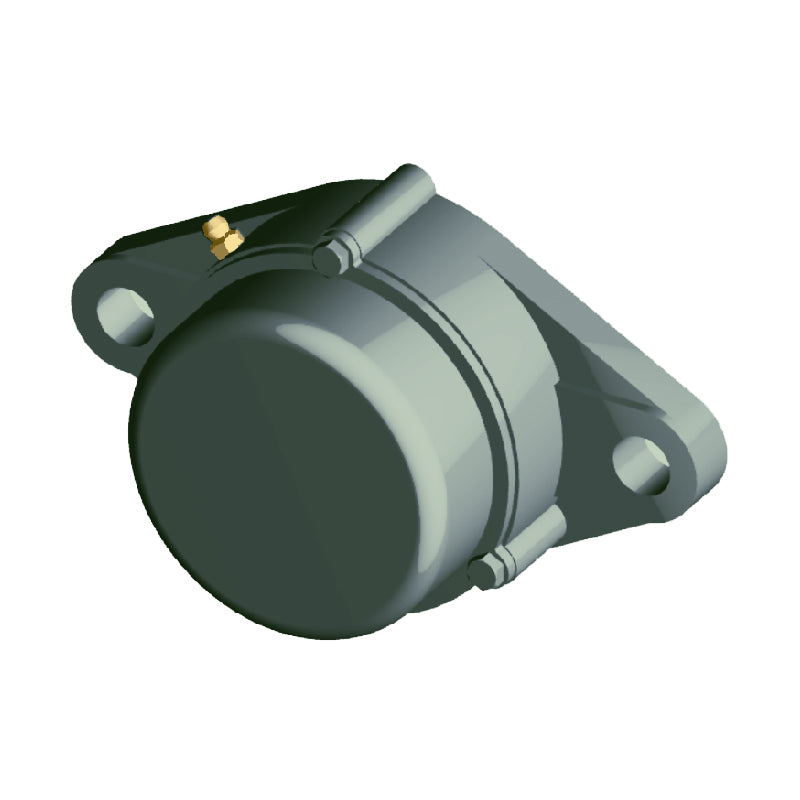

NTN CM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
$59.25
ex VAT
Regular price
Sale price
$59.25
ex VAT
In stock
Price Break
3+
$27.98
4+
$26.41
9+
$26.10
19+
$25.78
49+
$25.47
99+
$25.15
499+
$23.58
999+
$23.27
1999+
$22.95
2999+
$22.64
4999+
$22.01
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| H | 130mm |
| J | 99mm |
| A<sub>2</sub> | 16mm |
| A<sub>1</sub> | 13mm |
| A | 27mm |
| N | 16mm |
| L | 68mm |
| B | 34.1mm |
| S | 14.3mm |
| t<sub>2</sub> | 11mm |
| A<sub>5</sub> | 51mm |
| L<sub>1</sub> | 74mm |
| L<sub>2</sub> | 34mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 15.5 kN |
| Static load C<sub>0r</sub> | 7.85 kN |
| Fatigue load limit C<sub>u</sub> | 0.55 kN |
| --- | Unit information |
| Mass | 0.8 kg |
