SKU: BR.526832

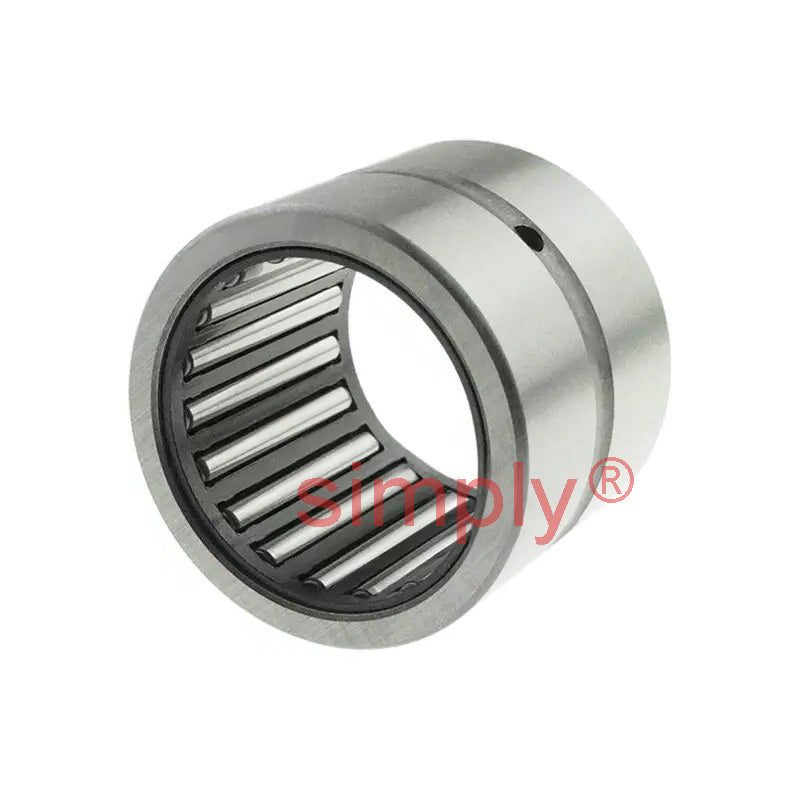

BR526832 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/4x4-1/4x2 inch
BR526832 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/4x4-1/4x2 inch
Regular price
$142.57
ex VAT
Regular price
Sale price
$142.57
ex VAT
Equivalent to: HJ526832 HJ-526832 ? SJ9568 NCS5232
In stock
Price Break
10+
$126.89
19+
$119.76
29+
$118.33
39+
$116.91
49+
$115.48
74+
$114.06
99+
$106.93
199+
$105.50
249+
$104.08
499+
$102.65
999+
$99.80
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ526832 HJ-526832 ? SJ9568 NCS5232
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 107.95mm = 4.25 (4-1/4) inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| Fw | 3-1/4 inch |
|---|---|
| D | 4-1/4 inch |
| C | 2 inch |
| Dynamic Load Cor | 154000 N |
| Static Load Cr | 290000 N |
| Weight | 1.14 kg |
