SKU: BR.243320

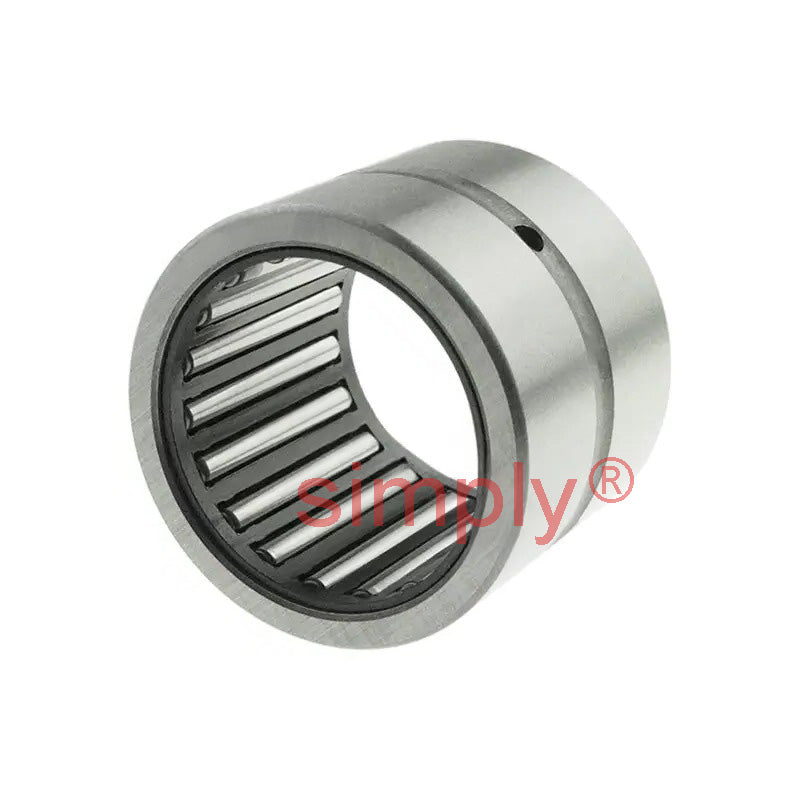

BR243320 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-1/2x2-1/16x1-1/4 inch
BR243320 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-1/2x2-1/16x1-1/4 inch
Regular price
$53.61
ex VAT
Regular price
Sale price
$53.61
ex VAT
Equivalent to: HJ243320 HJ-243320 MR24 MR-24 SJ7275 NCS2420
In stock
Price Break
10+
$25.32
20+
$23.90
30+
$23.61
40+
$23.33
50+
$23.04
75+
$22.76
100+
$21.34
200+
$21.05
250+
$20.77
500+
$20.48
1000+
$19.91
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ243320 HJ-243320 MR24 MR-24 SJ7275 NCS2420
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 52.39mm = 2.063 (2-1/16) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-1/2 inch |
|---|---|
| D | 2-1/16 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 54200 N |
| Static Load Cr | 88200 N |
| Weight | 0.187 kg |
