SKU: BR.122012

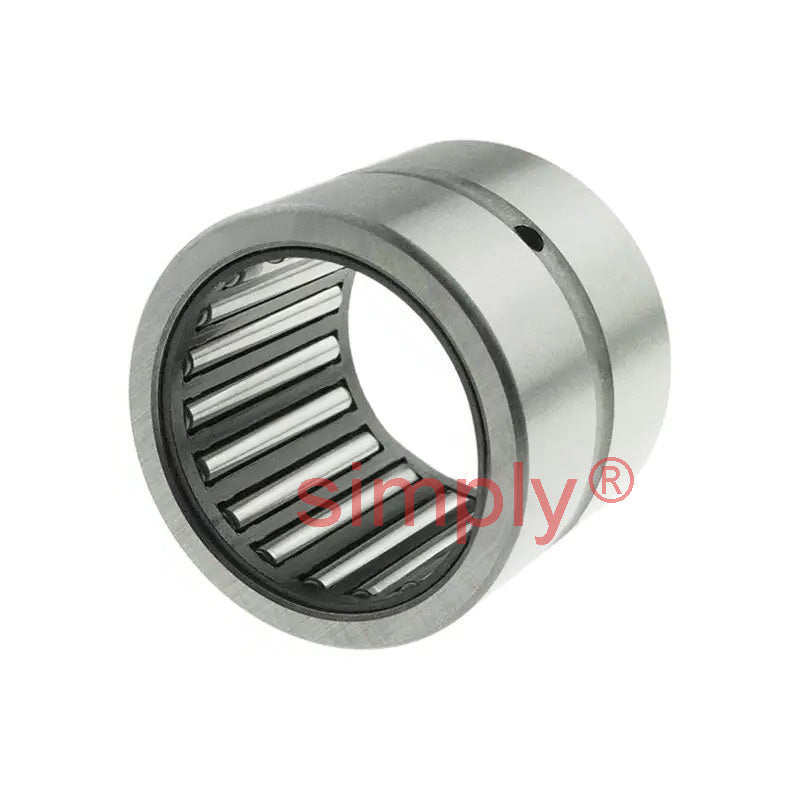

BR122012 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3/4x1-1/4x3/4 inch
BR122012 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3/4x1-1/4x3/4 inch
Regular price
$22.77
ex VAT
Regular price
Sale price
$22.77
ex VAT
Equivalent to: HJ122012 HJ-122012 MR12N MR-12-N SJ7153 NCS1212
In stock
Price Break
10+
$20.27
19+
$19.13
29+
$18.90
39+
$18.67
49+
$18.44
74+
$18.22
99+
$17.08
199+
$16.85
249+
$16.62
499+
$16.39
999+
$15.94
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ122012 HJ-122012 MR12N MR-12-N SJ7153 NCS1212
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 3/4 inch |
|---|---|
| D | 1-1/4 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 21700 N |
| Static Load Cr | 24400 N |
| Weight | 0.056 kg |
