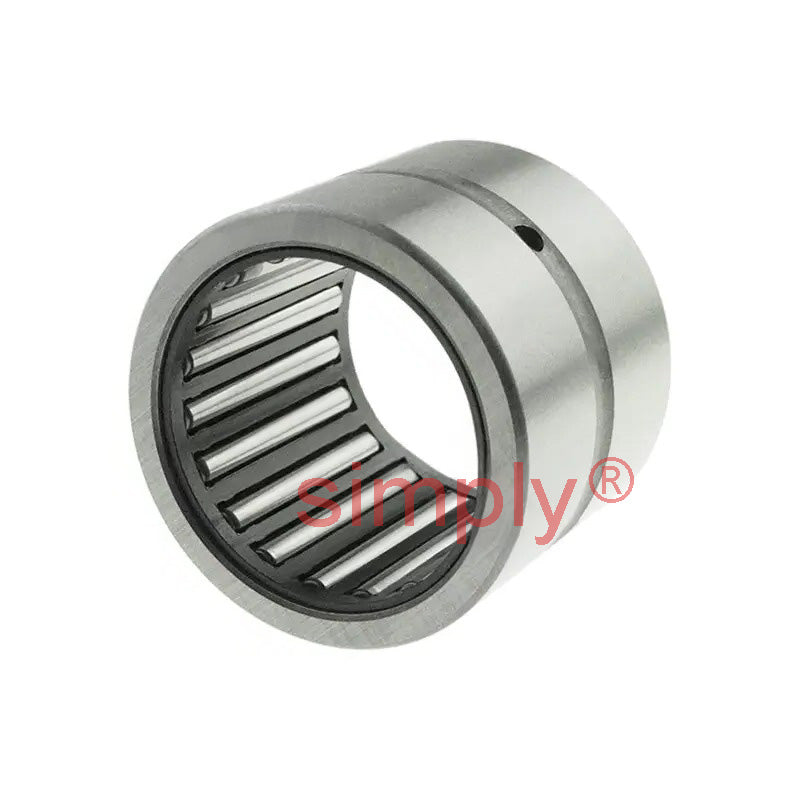

BR101812 Machined Type Imperial Needle Roller Bearing Without Inner Ring 5/8x1-1/8x3/4 inch
BR101812 Machined Type Imperial Needle Roller Bearing Without Inner Ring 5/8x1-1/8x3/4 inch
Regular price
$22.41
ex VAT
Regular price
Sale price
$22.41
ex VAT
Equivalent to: HJ101812 HJ-101812 MR10N MR-10-N SJ7133 NCS1012
In stock
Price Break
10+
$10.59
20+
$9.99
30+
$9.87
40+
$9.75
50+
$9.63
75+
$9.52
100+
$8.92
200+
$8.80
250+
$8.68
500+
$8.56
1000+
$8.33
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ101812 HJ-101812 MR10N MR-10-N SJ7133 NCS1012
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical

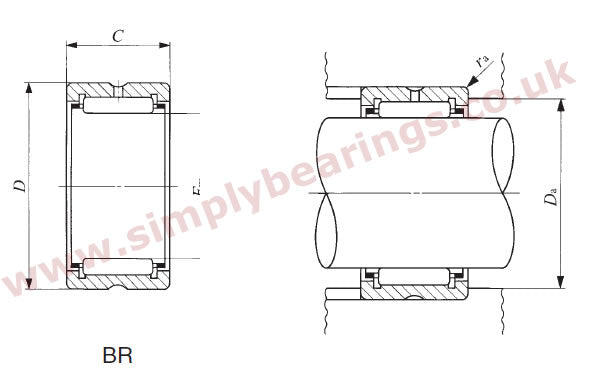

| Fw | 5/8 inch |
|---|---|
| D | 1-1/8 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 18900 N |
| Static Load Cr | 19700 N |
| Weight | 0.049 kg |
