SKU: BK3038-EU

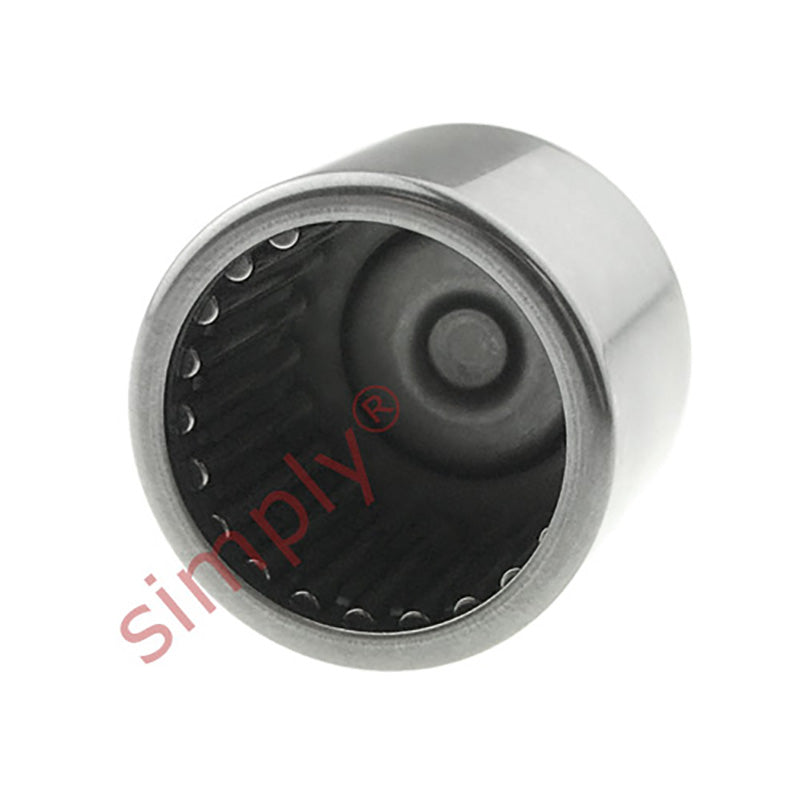

BK3038 Budget Drawn Cup Needle Roller Bearing with One Closed End 30x37x38mm
BK3038 Budget Drawn Cup Needle Roller Bearing with One Closed End 30x37x38mm
Regular price
$22.36
ex VAT
Regular price
Sale price
$22.36
ex VAT
In stock
Price Break
10+
$19.90
19+
$18.78
29+
$18.56
39+
$18.34
49+
$18.11
74+
$17.89
99+
$16.77
199+
$16.55
249+
$16.32
499+
$16.10
999+
$15.65
Couldn't load pickup availability
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 38mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 37mm |
| C | 38mm |
| Dynamic load C | 35800 N |
| Static load Co | 80000 N |
| Fatigue load limit Pu | 9500 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| C1 | 35.3mm |
| r1r2 min | 0.8mm |
| Da max | 32mm |
| ra max | 0.8mm |
| Inner ring | IR25x30x38.5 |
| Seal | G/SD30x37x4 |
| Weight | 84 g |
