SKU: BK1512-MB

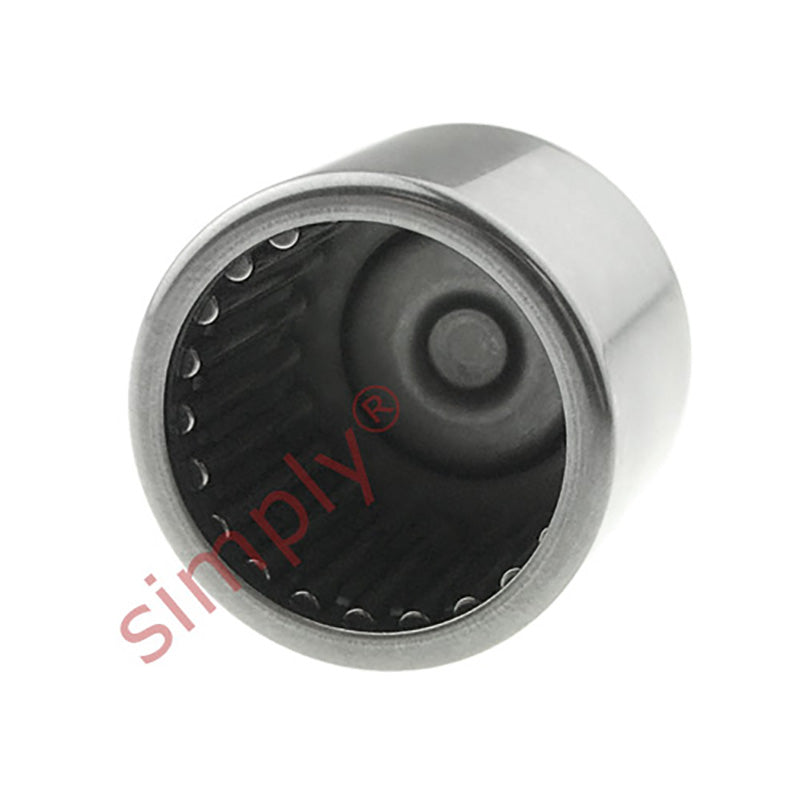

Major Brand BK1512 Drawn Cup Type Needle Roller Bearing with One Closed End 15x21x12mm
Major Brand BK1512 Drawn Cup Type Needle Roller Bearing with One Closed End 15x21x12mm
Regular price
$12.06
ex VAT
Regular price
Sale price
$12.06
ex VAT
In stock
Price Break
10+
$5.69
19+
$5.37
29+
$5.31
39+
$5.24
49+
$5.18
74+
$5.12
99+
$4.80
199+
$4.73
249+
$4.67
499+
$4.60
999+
$4.48
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 12mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 21mm |
| C | 12mm |
| Dynamic load | 7650 N |
| Static load | 9500 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 11000 rpm |
| Speed in oil | 17000 rpm |
| C1 | 9.3mm |
| r1r2 min | 0.8mm |
| Da max | 16mm |
| ra max | 0.8mm |
| Inner ring | IR12x15x12.5 |
| Seal | G/SD15x21x3 |
| Weight | 13 g |
