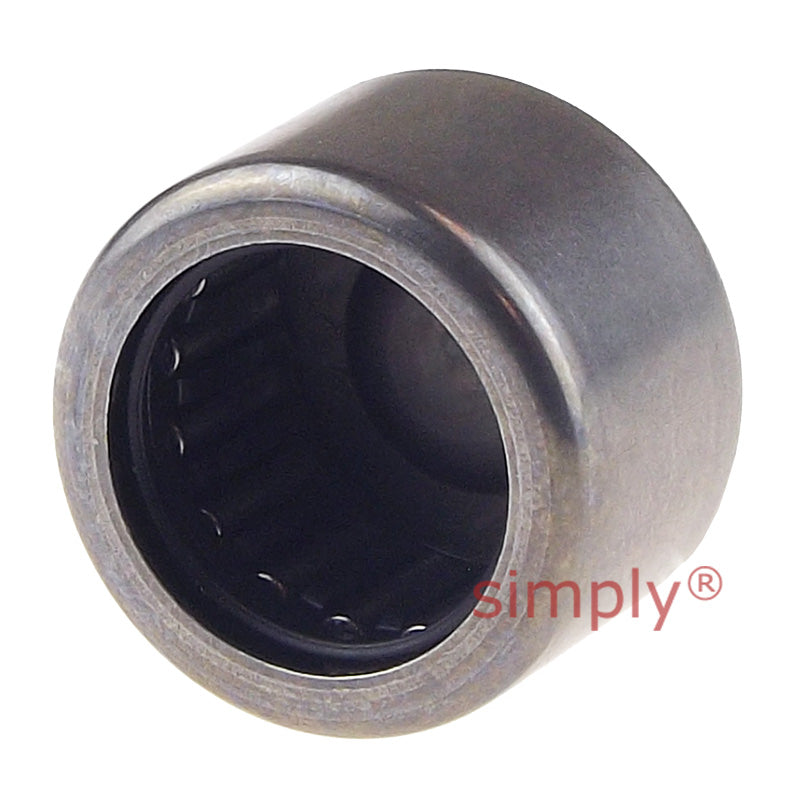

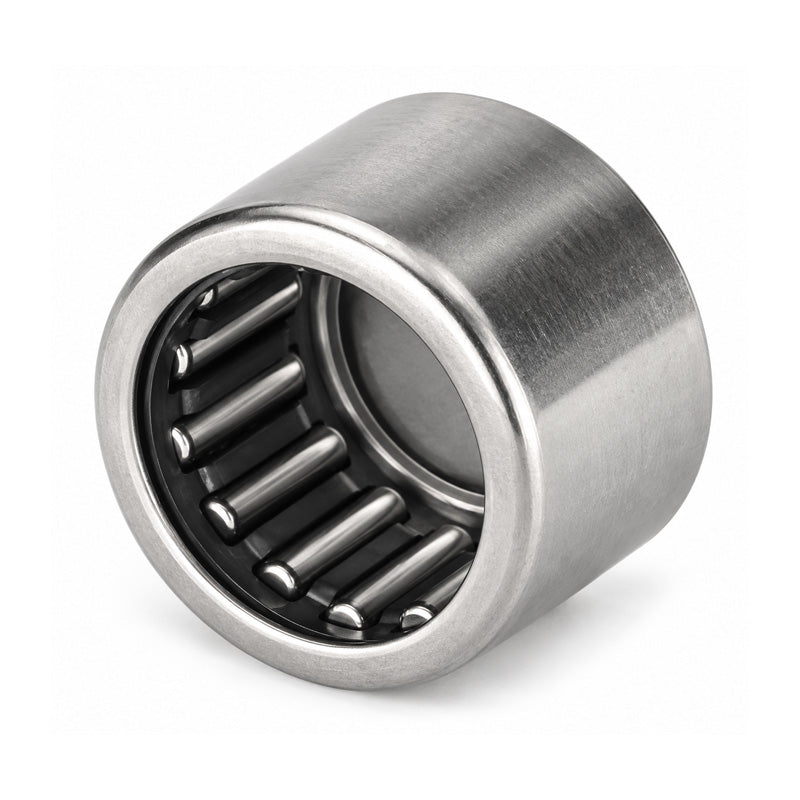

BK1414RS Budget Drawn Cup Needle Roller Bearing with One Closed End 14x20x14mm
BK1414RS Budget Drawn Cup Needle Roller Bearing with One Closed End 14x20x14mm
Regular price
$12.17
ex VAT
Regular price
Sale price
$12.17
ex VAT
In stock
Price Break
10+
$5.75
19+
$5.42
29+
$5.36
39+
$5.29
49+
$5.23
74+
$5.17
99+
$4.84
199+
$4.78
249+
$4.71
499+
$4.65
999+
$4.52
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 20mm |
| C | 14mm |
| Dynamic load C | 6820 N |
| Static load Co | 8650 N |
| Fatigue load limit Pu | 980 N |
| Speed in grease | 11000 rpm |
| C1 | 11.3mm |
| r1r2 min | 0.8mm |
| Da max | 15mm |
| ra max | 0.8mm |
| Inner ring | IR10x14x13 |
| Weight | 13 g |
