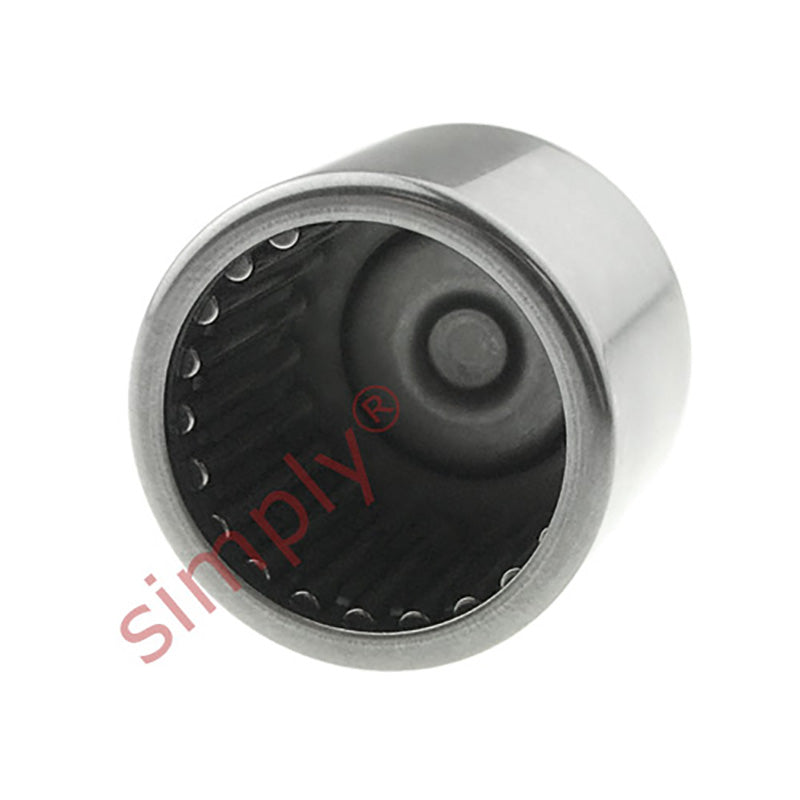

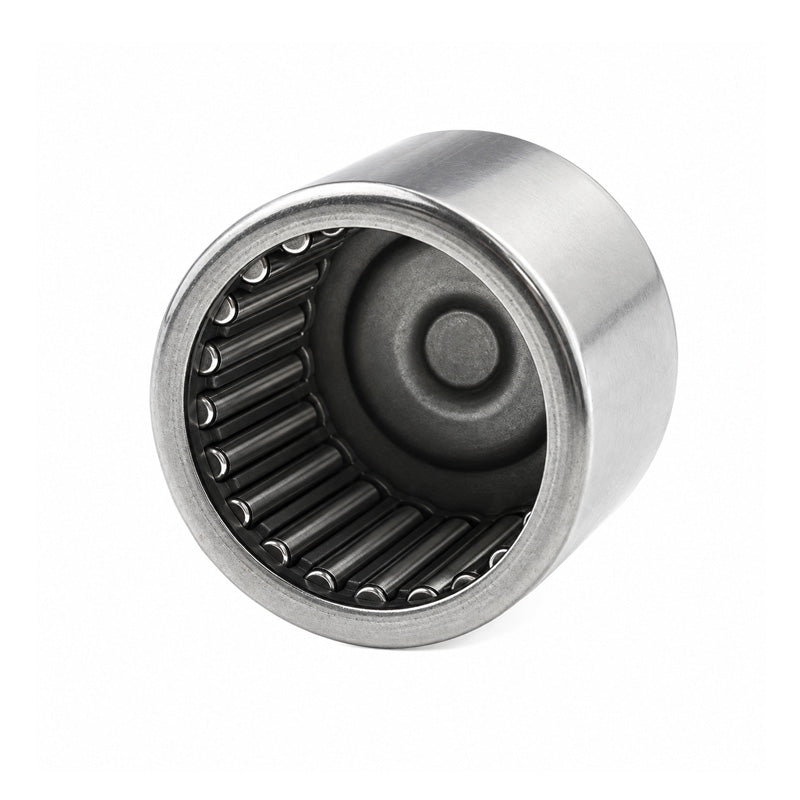

NTN BK1312 Drawn Cup Needle Roller Bearing with Closed End 13x19x12mm
NTN BK1312 Drawn Cup Needle Roller Bearing with Closed End 13x19x12mm
Regular price
$9.54
ex VAT
Regular price
Sale price
$9.54
ex VAT
In stock
Price Break
10+
$8.49
19+
$8.01
29+
$7.92
39+
$7.82
49+
$7.73
74+
$7.63
99+
$7.16
199+
$7.06
249+
$6.96
499+
$6.87
999+
$6.68
Couldn't load pickup availability
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 13mm
- Outside Diameter:
- 19mm
- Width:
- 12mm
Technical
Technical

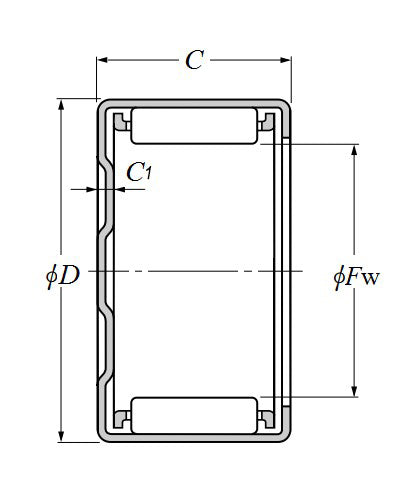

| Fw - Under rollers diameter | 13mm |
|---|---|
| D - Outside diameter | 19mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR10X13X12.5 |
| Cr - Dynamic load rating | 6.95 kN |
| C0r - Static load rating | 7.9 kN |
| N - Grease lubrication limit speed | 12000 tr/min |
| N - Oil lubrication limit speed | 18000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
