SKU: BK0509-MB

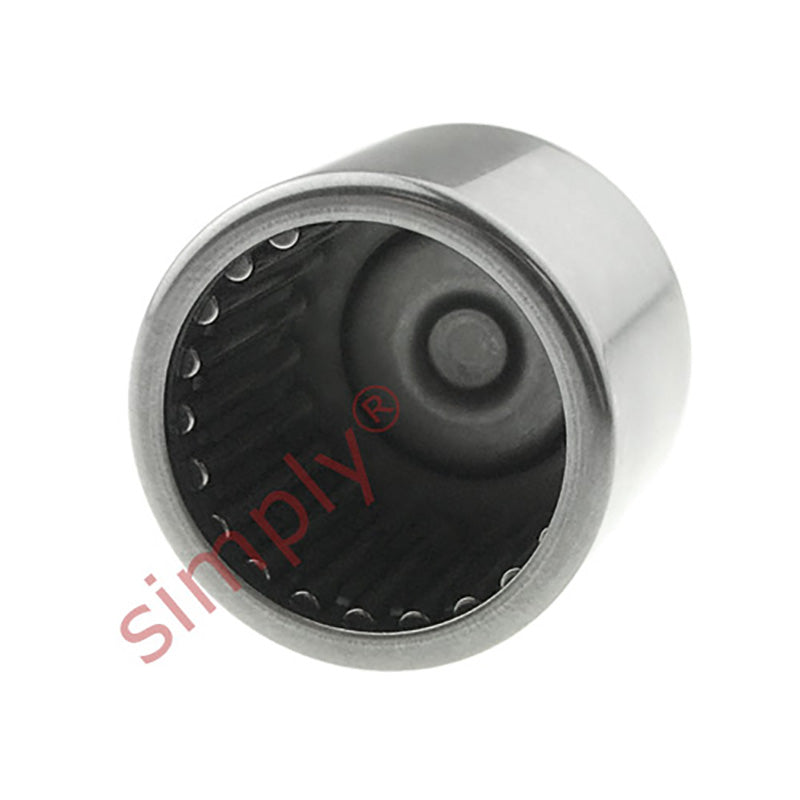

Major Brand BK0509 Drawn Cup Type Needle Roller Bearing with One Closed End 5x9x9mm
Major Brand BK0509 Drawn Cup Type Needle Roller Bearing with One Closed End 5x9x9mm
Regular price
$10.18
ex VAT
Regular price
Sale price
$10.18
ex VAT
In stock
Price Break
10+
$9.06
19+
$8.55
29+
$8.45
39+
$8.35
49+
$8.25
74+
$8.14
99+
$7.64
199+
$7.53
249+
$7.43
499+
$7.33
999+
$7.13
Couldn't load pickup availability
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 9mm
- Width:
- 9mm
Technical
Technical
| Fw | 5mm |
|---|---|
| D | 9mm |
| C | 9mm |
| Dynamic load | 2380 N |
| Static load | 2080 N |
| Fatigue load limit Pu | 220 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| C1 | 7.2mm |
| r1r2 min | 0.4mm |
| Da max | 5.3mm |
| ra max | 0.4mm |
| Seal | G5x9x2S |
| Weight | 2.1 g |
