SKU: BK0509-EU

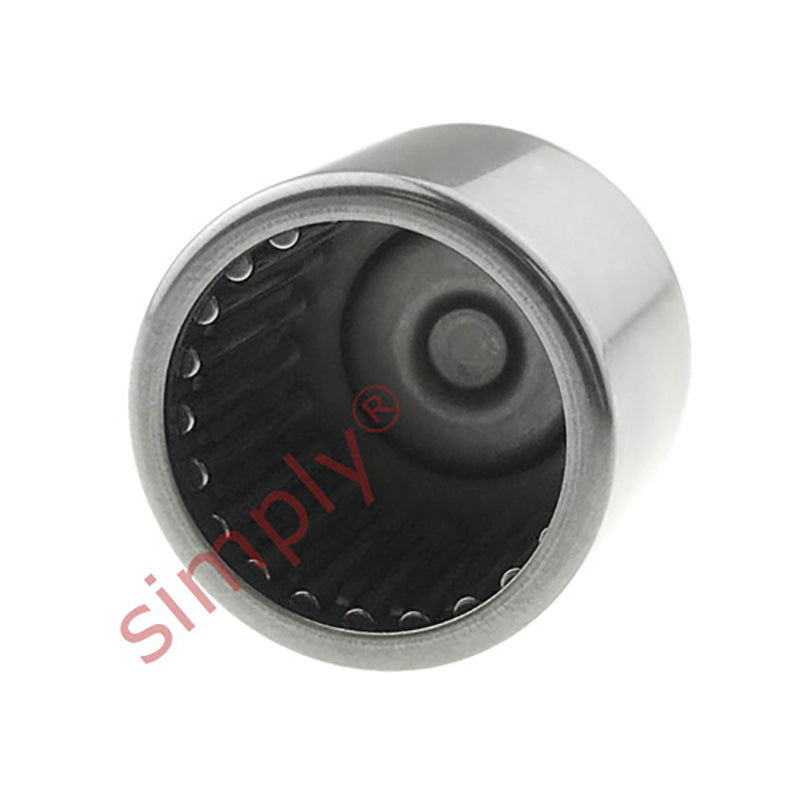

BK0509 Budget Drawn Cup Needle Roller Bearing with One Closed End 5x9x9mm
BK0509 Budget Drawn Cup Needle Roller Bearing with One Closed End 5x9x9mm
Regular price
$4.93
ex VAT
Regular price
Sale price
$4.93
ex VAT
In stock
Price Break
10+
$4.39
19+
$4.14
29+
$4.09
39+
$4.04
49+
$3.99
74+
$3.94
99+
$3.70
199+
$3.65
249+
$3.60
499+
$3.55
999+
$3.45
Couldn't load pickup availability
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 9mm
- Width:
- 9mm
Technical
Technical
| Fw | 5mm |
|---|---|
| D | 9mm |
| C | 9mm |
| Dynamic load C | 2380 N |
| Static load Co | 2080 N |
| Fatigue load limit Pu | 220 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| C1 | 7.2mm |
| r1r2 min | 0.4mm |
| Da max | 5.3mm |
| ra max | 0.4mm |
| Seal | G5x9x2S |
| Weight | 2.1 g |
