SKU: BHAM.2020

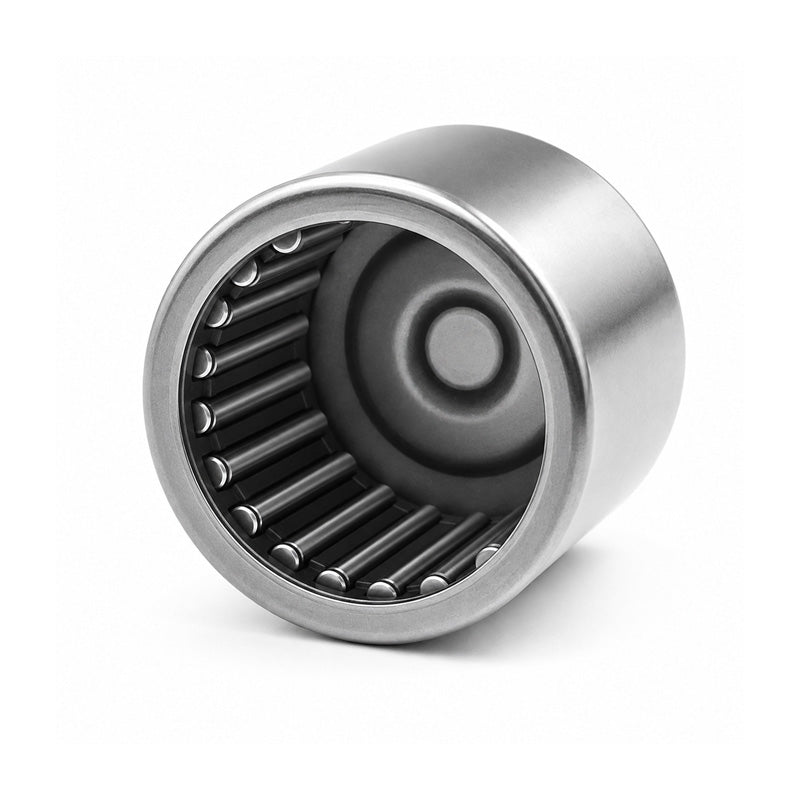

BHAM2020 Needle Roller Bearing 1-1/4x1-5/8x1-1/4 inch
BHAM2020 Needle Roller Bearing 1-1/4x1-5/8x1-1/4 inch
Regular price
$24.67
ex VAT
Regular price
Sale price
$24.67
ex VAT
Equivalent to: MJH20201 BCH2020
In stock
Price Break
10+
$21.96
19+
$20.72
29+
$20.48
39+
$20.23
49+
$19.98
74+
$19.74
99+
$18.50
199+
$18.26
249+
$18.01
499+
$17.76
999+
$17.27
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH20201 BCH2020
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-1/4 inch |
|---|---|
| D | 1-5/8 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 40000 N |
| Static Load Cr | 69600 N |
| Weight | 0.0865 kg |
