SKU: BHAM.1818

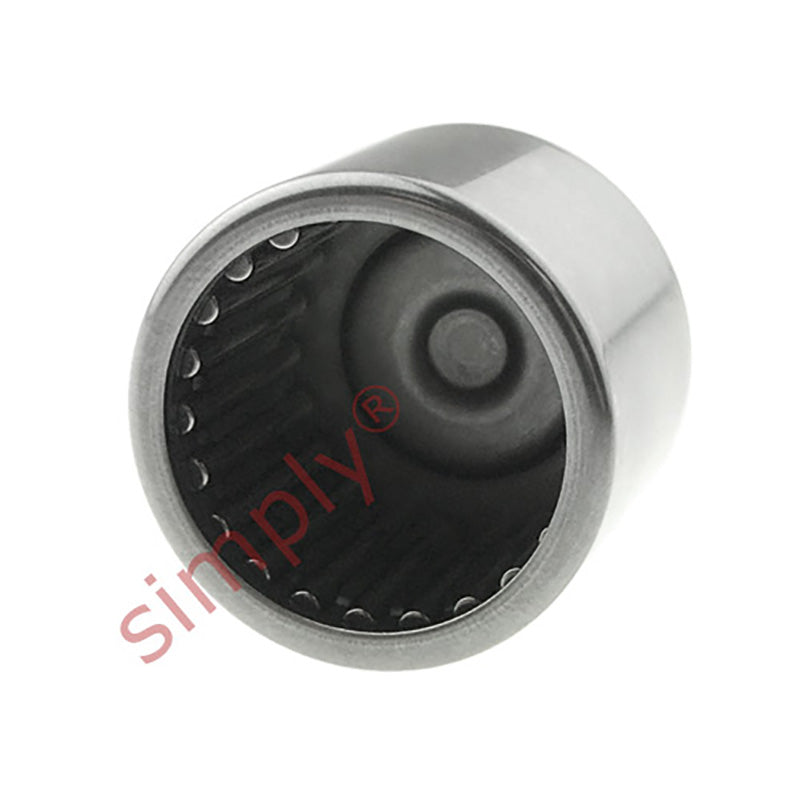

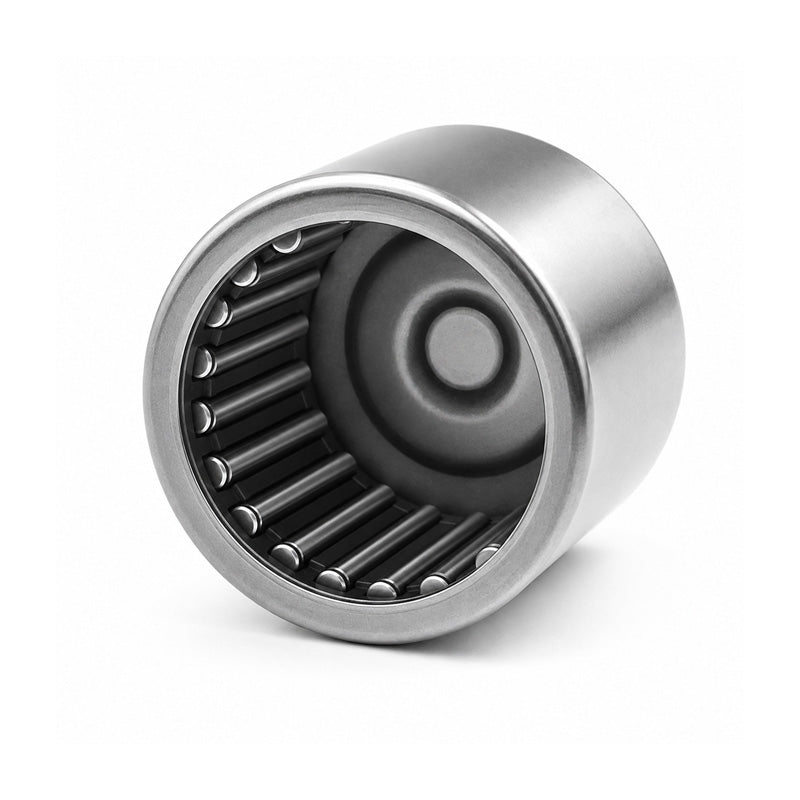

BHAM1818 Needle Roller Bearing 1-1/8x1-1/2x1-1/8 inch
BHAM1818 Needle Roller Bearing 1-1/8x1-1/2x1-1/8 inch
Regular price
$16.69
ex VAT
Regular price
Sale price
$16.69
ex VAT
Equivalent to: MJH18181 BCH1818
In stock
Price Break
10+
$14.85
19+
$14.02
29+
$13.85
39+
$13.69
49+
$13.52
74+
$13.35
99+
$12.52
199+
$12.35
249+
$12.18
499+
$12.02
999+
$11.68
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH18181 BCH1818
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 28.58mm = 1.125 (1-1/8) inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-1/2 inch |
| C | 1-1/8 inch |
| Dynamic Load Cor | 34900 N |
| Static Load Cr | 56600 N |
| Weight | 0.0715 kg |
