SKU: BHAM.1816

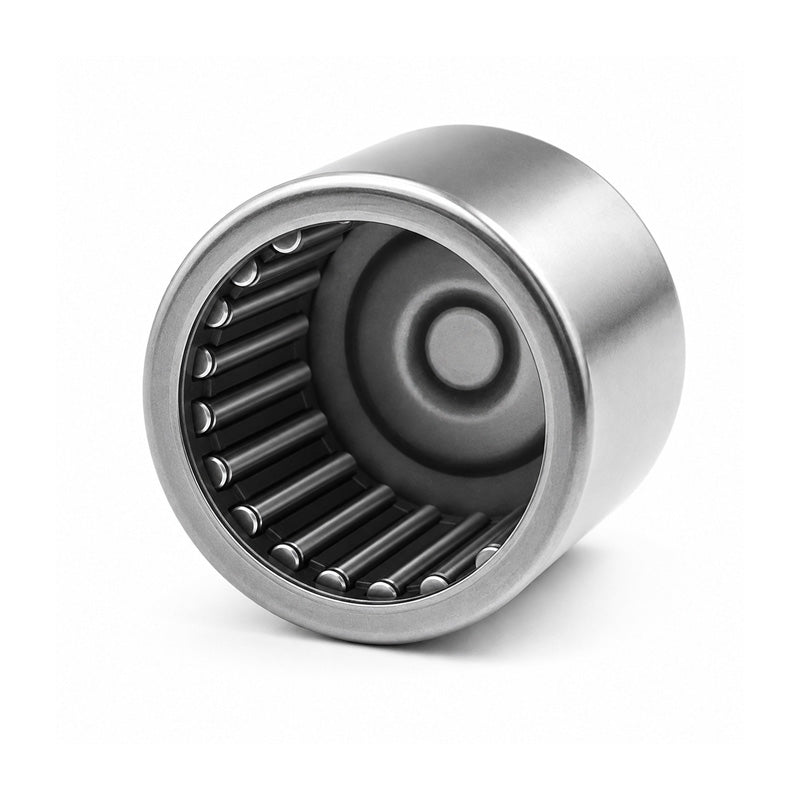

BHAM1816 Needle Roller Bearing 1-1/8x1-1/2x1 inch
BHAM1816 Needle Roller Bearing 1-1/8x1-1/2x1 inch
Regular price
$15.48
ex VAT
Regular price
Sale price
$15.48
ex VAT
Equivalent to: MJH18161 BCH1816
In stock
Price Break
10+
$13.78
19+
$13.00
29+
$12.85
39+
$12.69
49+
$12.54
74+
$12.38
99+
$11.61
199+
$11.46
249+
$11.30
499+
$11.15
999+
$10.84
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH18161 BCH1816
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-1/2 inch |
| C | 1 inch |
| Dynamic Load Cor | 30900 N |
| Static Load Cr | 48600 N |
| Weight | 0.064 kg |
