SKU: BHA.2212.ZOH

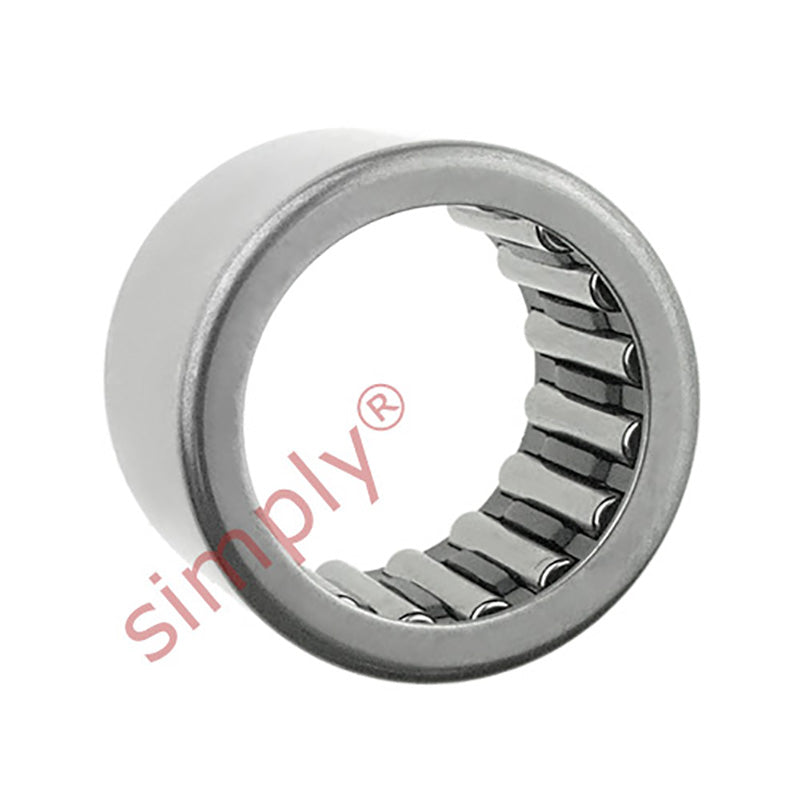

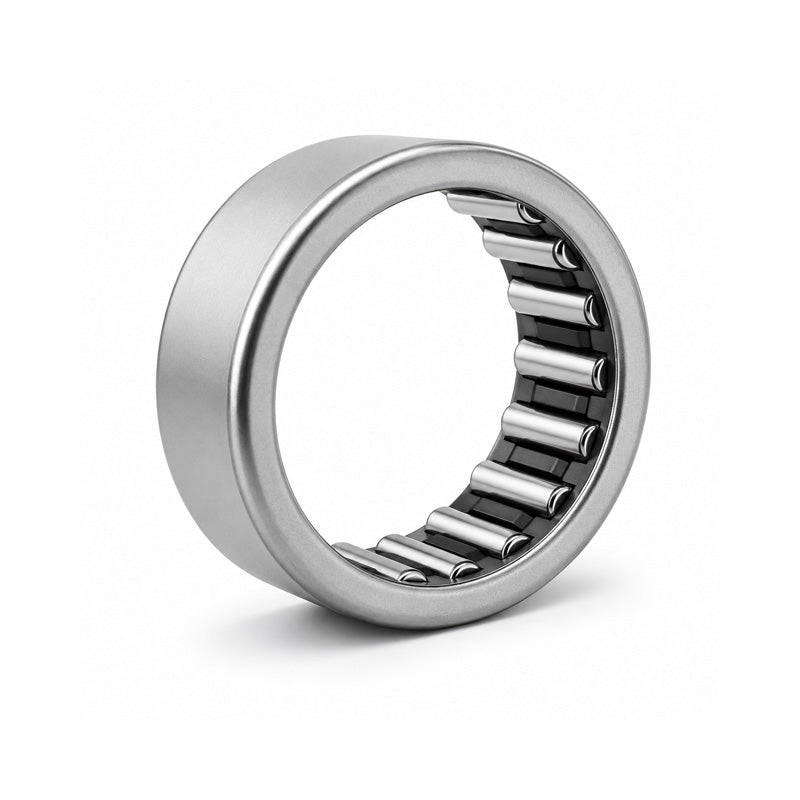

BHA2212ZOH Needle Roller Bearing 1-3/8x1-3/4x3/4 inch
BHA2212ZOH Needle Roller Bearing 1-3/8x1-3/4x3/4 inch
Regular price
$11.20
ex VAT
Regular price
Sale price
$11.20
ex VAT
Equivalent to: JH2212 SCH2212
In stock
Price Break
10+
$9.97
19+
$9.41
29+
$9.30
39+
$9.18
49+
$9.07
74+
$8.96
99+
$8.40
199+
$8.29
249+
$8.18
499+
$8.06
999+
$7.84
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH2212 SCH2212
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-3/8 inch |
|---|---|
| D | 1-3/4 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 24800 N |
| Static Load Cr | 38800 N |
| Weight | 0.053 kg |
