SKU: BHA.2016.ZOH

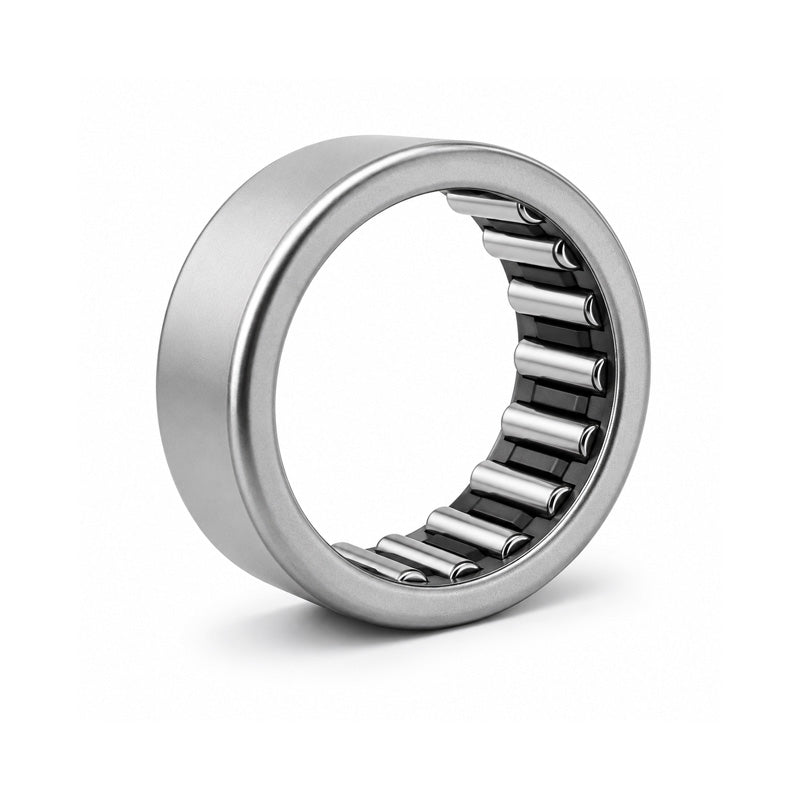

BHA2016ZOH Needle Roller Bearing 1-1/4x1-5/8x1 inch
BHA2016ZOH Needle Roller Bearing 1-1/4x1-5/8x1 inch
Regular price
$10.92
ex VAT
Regular price
Sale price
$10.92
ex VAT
Equivalent to: JH2016 SCH2016
In stock
Price Break
10+
$9.72
19+
$9.17
29+
$9.06
39+
$8.95
49+
$8.85
74+
$8.74
99+
$8.19
199+
$8.08
249+
$7.97
499+
$7.86
999+
$7.64
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH2016 SCH2016
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-1/4 inch |
|---|---|
| D | 1-5/8 inch |
| C | 1 inch |
| Dynamic Load Cor | 33200 N |
| Static Load Cr | 55000 N |
| Weight | 0.066 kg |
