SKU: BHA.1616.ZOH

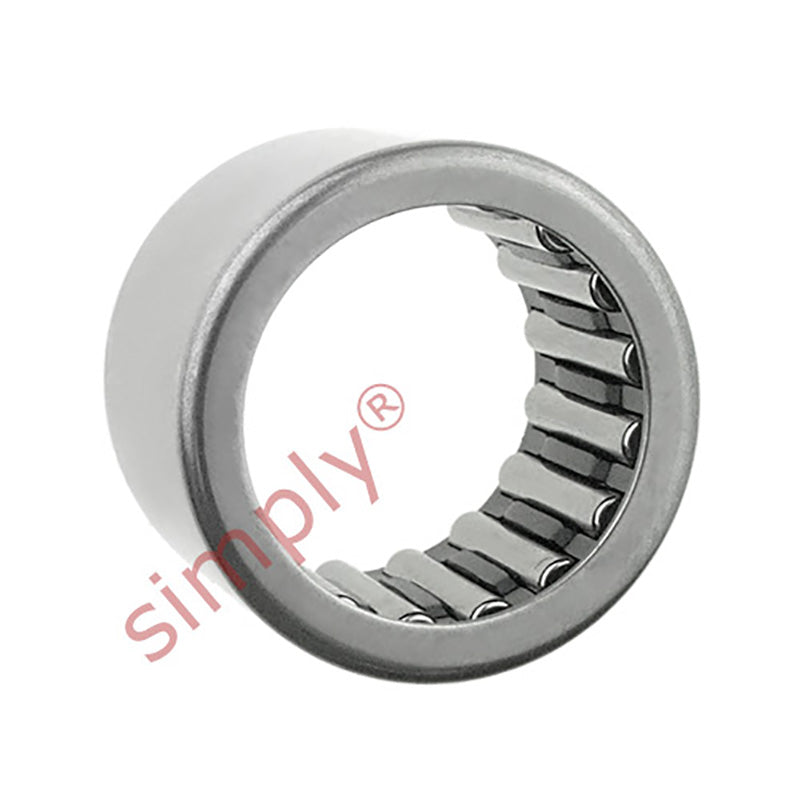

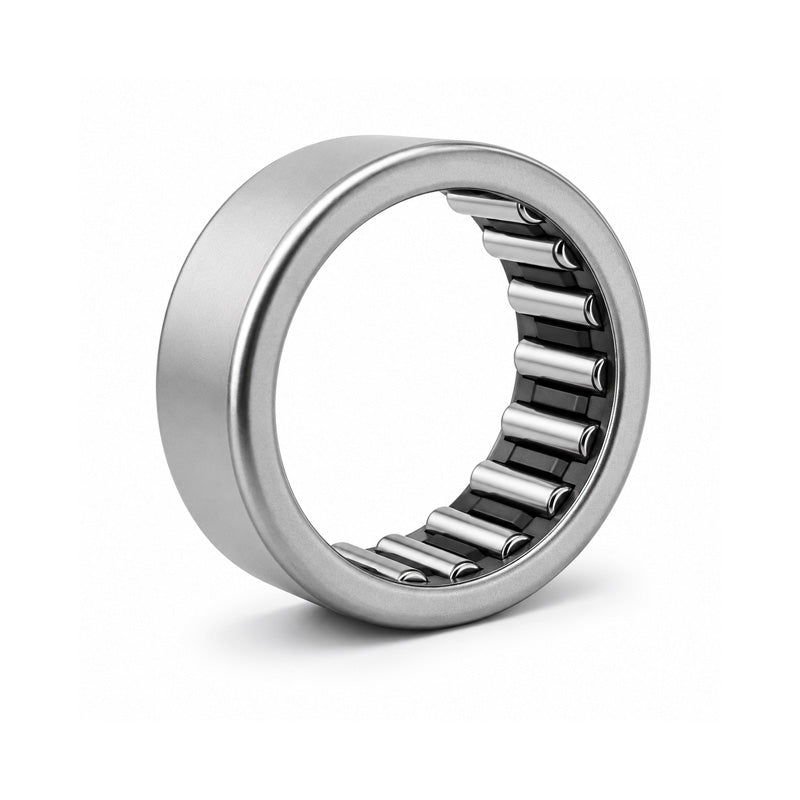

BHA1616ZOH Needle Roller Bearing 1x1-5/16x1 inch
BHA1616ZOH Needle Roller Bearing 1x1-5/16x1 inch
Regular price
$8.55
ex VAT
Regular price
Sale price
$8.55
ex VAT
Equivalent to: JH1616 SCH1616
In stock
Price Break
10+
$7.61
19+
$7.18
29+
$7.10
39+
$7.01
49+
$6.93
74+
$6.84
99+
$6.41
199+
$6.33
249+
$6.24
499+
$6.16
999+
$5.99
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1616 SCH1616
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1 inch |
|---|---|
| D | 1-5/16 inch |
| C | 1 inch |
| Dynamic Load Cor | 26400 N |
| Static Load Cr | 44500 N |
| Weight | 0.045 kg |
