SKU: BHA.1110.ZOH

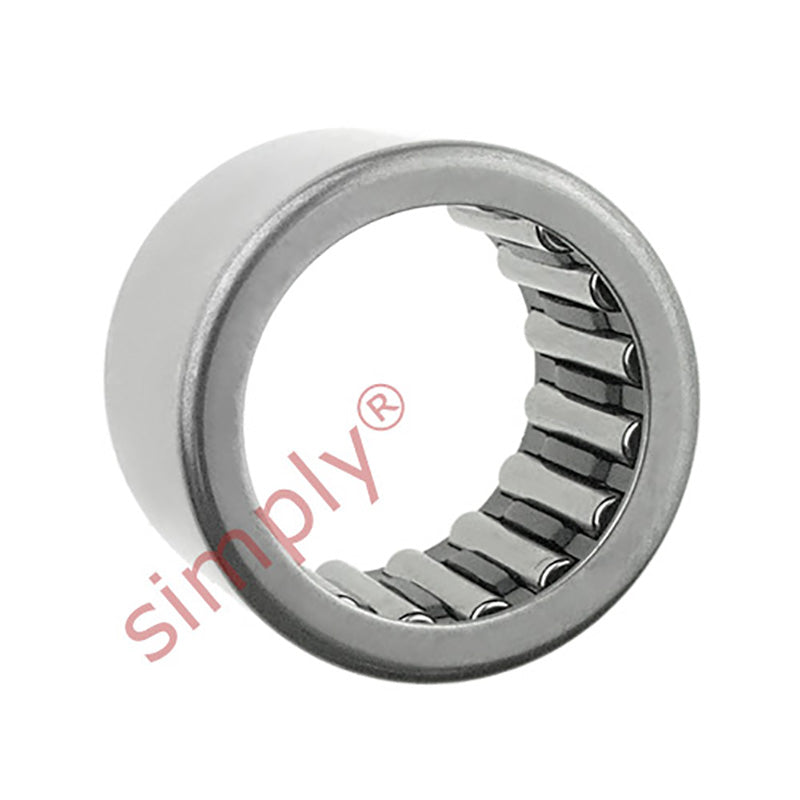

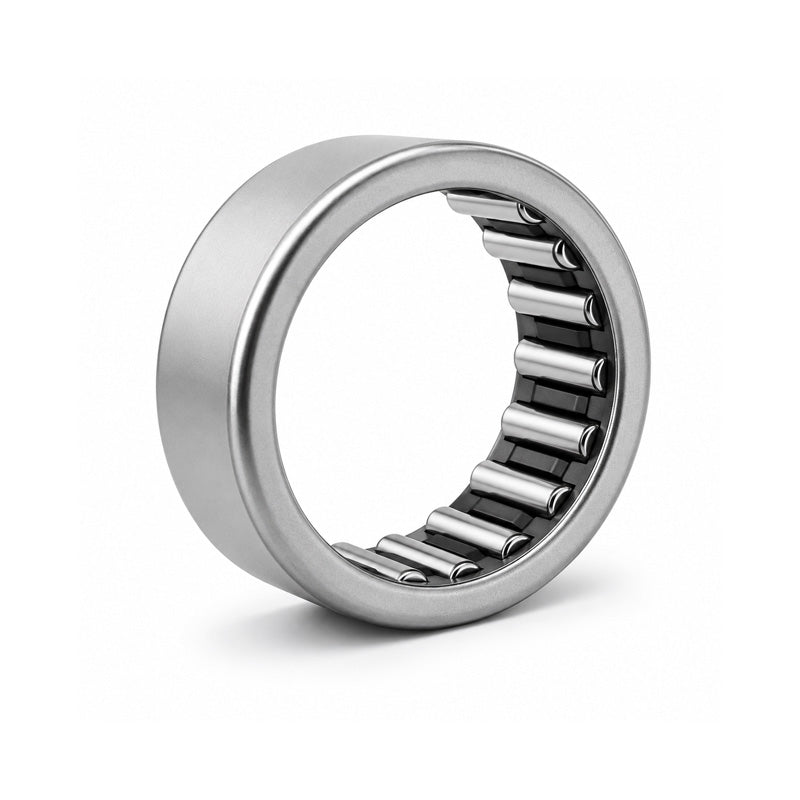

BHA1110ZOH Needle Roller Bearing 11/16x15/16x5/8 inch
BHA1110ZOH Needle Roller Bearing 11/16x15/16x5/8 inch
Regular price
$7.40
ex VAT
Regular price
Sale price
$7.40
ex VAT
Equivalent to: JH1110 SCH1110
In stock
Price Break
10+
$6.59
19+
$6.22
29+
$6.14
39+
$6.07
49+
$5.99
74+
$5.92
99+
$5.55
199+
$5.48
249+
$5.40
499+
$5.33
999+
$5.18
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1110 SCH1110
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Outside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 11/16 inch |
|---|---|
| D | 15/16 inch |
| C | 5/8 inch |
| Dynamic Load Cor | 10500 N |
| Static Load Cr | 14900 N |
| Weight | 0.016 kg |
