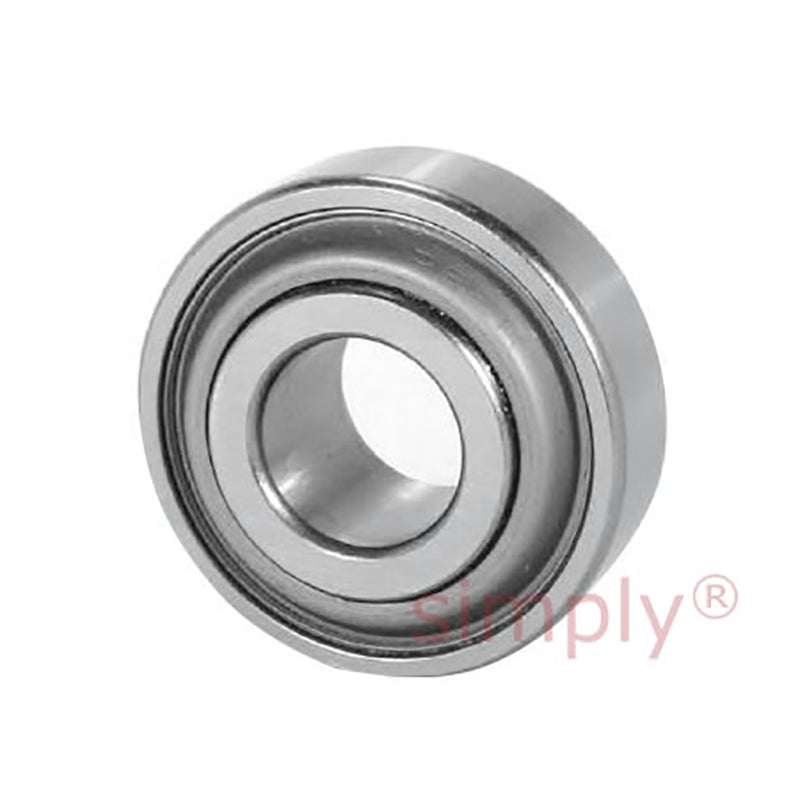

• Major Brand BB203KYY2 Press Wheel Round Bore Bearing 0.64x1.5748x0.72 inch - Allow 2-3 Days
1 1

SKU: BB203KYY2-MB

Major Brand BB203KYY2 Press Wheel Round Bore Bearing 0.64x1.5748x0.72 inch - Allow 2-3 Days

Major Brand BB203KYY2 Press Wheel Round Bore Bearing 0.64x1.5748x0.72 inch - Allow 2-3 Days
$37.58 ex VAT
$37.58 ex VAT
Sale Sold out

In stock

Price Break
5+ $19.74
9+ $18.94
19+ $18.54
29+ $17.95
49+ $17.55
74+ $16.55
99+ $13.96
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Press Wheel/Closing Wheel
Application conditions:

  • Press and closing wheel perform different functions in the machine but are exposed to similar application conditions; similar bearing solutions are used
  • Dusty and sometimes moist environment
Benefits and functional features:

Increased productivity and bearing life in field:
  • Optimized internal geometry
  • High load capacity
  • High contamination feature package with exclusive sealing system
Increased speed to the market:
  • PEER offers the industries largest range of high performance seeding bearings

Seal Type: Y, DBL
Typical Application & Speed Limit: Planters: Press Wheel/Gauge Wheel - Basic BRG. Size < 205: 2000 RPM , Basic BRG. Size > 205: 1000 RPM
Typical Environment: Light direct contamination, at one foot distance from ground
Contamination Exclusion: High

Brand / Quality:
PEER - High Quality
Inside Diameter:
16.25mm = 0.64 inch
Outside Diameter:
40mm = 1.574 inch
Width:
18.28mm = 0.72 inch

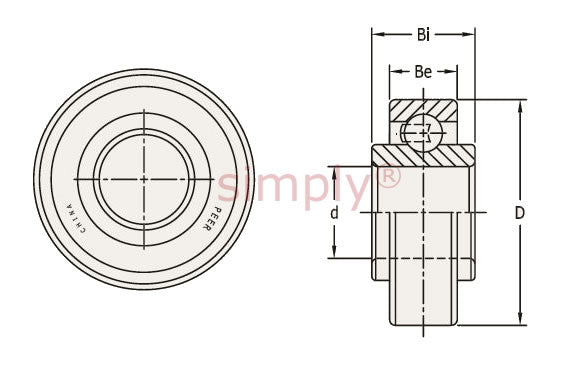

Technical
d 0.64 inch = 16.256mm (Tolerance +.0000 to minus 0.005)
D 1.5748 inch = 40mm (Tolerance +.0000 to minus 0.0005)
Bi 0.72 inch = 18.288mm (Tolerance +.0000 to minus 0.005)
Be 0.4724 inch = 12mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type Y, DBL Seal
