SKU: BAM.98

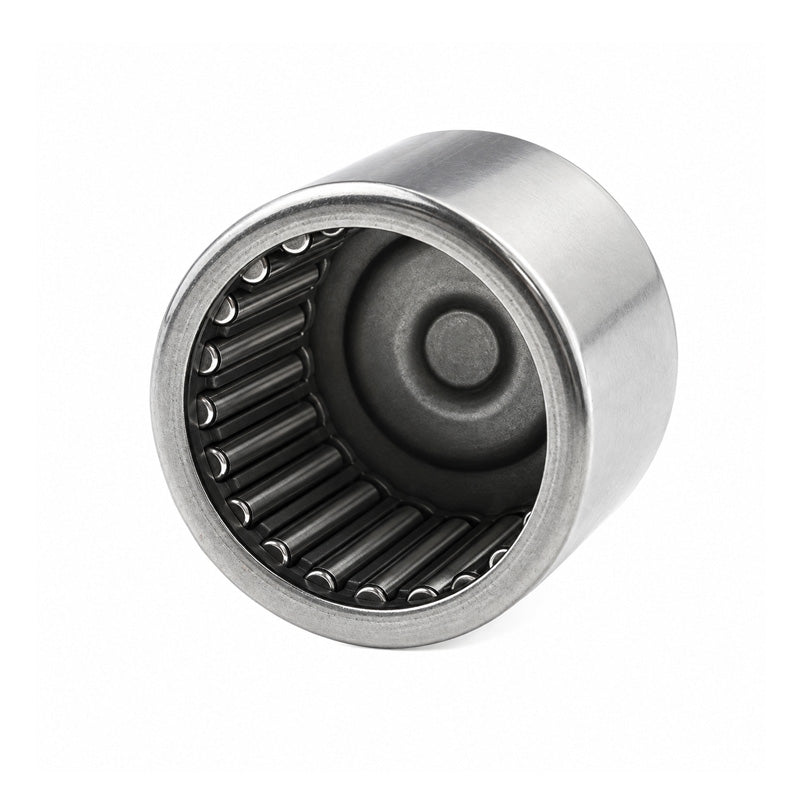

BAM98 Imperial Closed End Needle Roller Bearing 9/16x3/4x1/2 inch
BAM98 Imperial Closed End Needle Roller Bearing 9/16x3/4x1/2 inch
Regular price
$7.89
ex VAT
Regular price
Sale price
$7.89
ex VAT
Equivalent to: MJ981 BCE98
In stock
Price Break
10+
$7.02
19+
$6.63
29+
$6.55
39+
$6.47
49+
$6.39
74+
$6.31
99+
$5.92
199+
$5.84
249+
$5.76
499+
$5.68
999+
$5.52
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ981 BCE98
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 9/16 inch |
|---|---|
| D | 3/4 inch |
| C | 1/2 inch |
| t2 max | 1.3mm |
| Dynamic Load C | 5220 N |
| Static Load C0 | 6740 N |
| Weight | 8.9 g |
