SKU: BAM.65

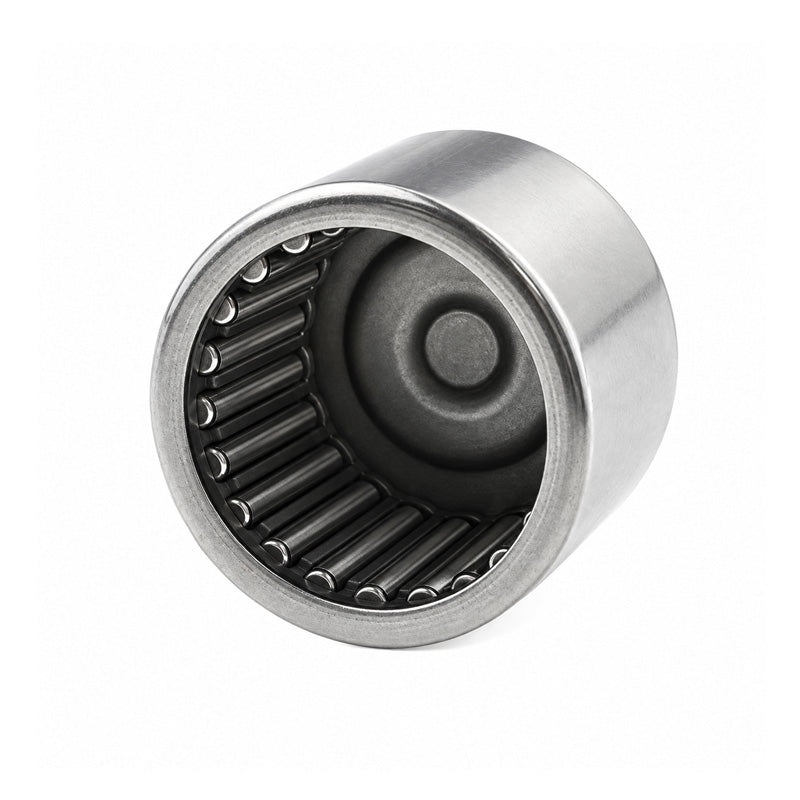

BAM65 Imperial Closed End Needle Roller Bearing 3/8x9/16x5/16 inch
BAM65 Imperial Closed End Needle Roller Bearing 3/8x9/16x5/16 inch
Regular price
$7.89
ex VAT
Regular price
Sale price
$7.89
ex VAT
Equivalent to: MJ651 BCE65
In stock
Price Break
10+
$7.02
19+
$6.63
29+
$6.55
39+
$6.47
49+
$6.39
74+
$6.31
99+
$5.92
199+
$5.84
249+
$5.76
499+
$5.68
999+
$5.52
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ651 BCE65
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Outside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Width:
- 7.93mm = 0.312 (5/16) inch
Technical
Technical
| Fw | 3/8 inch |
|---|---|
| D | 9/16 inch |
| C | 5/16 inch |
| t2 max | 1mm |
| Dynamic Load C | 2220 N |
| Static Load C0 | 2010 N |
| Weight | 3.9 g |
