SKU: BAM.57

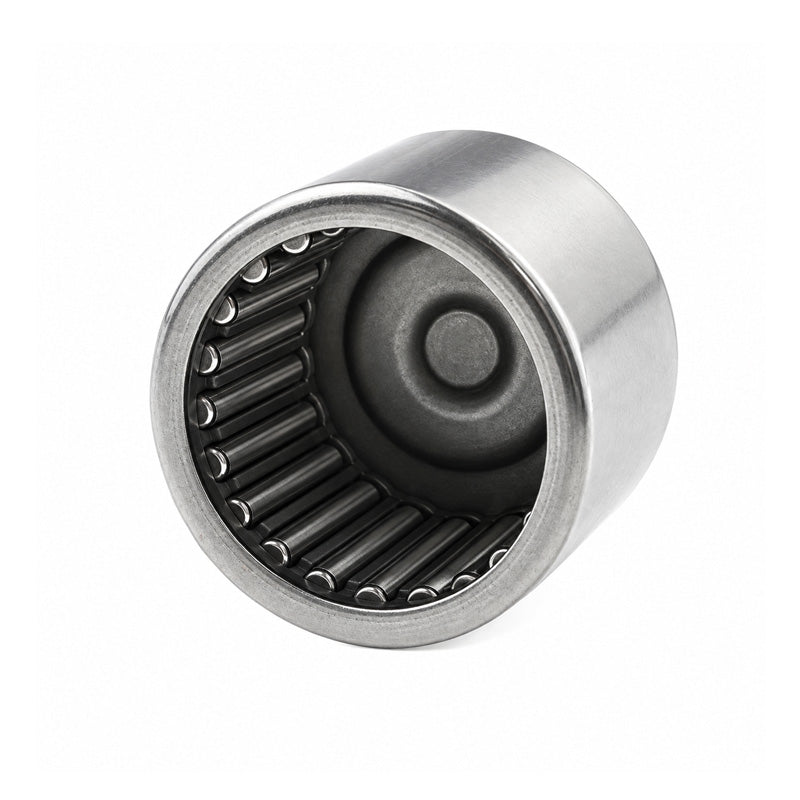

BAM57 Imperial Closed End Needle Roller Bearing 5/16x1/2x7/16 inch
BAM57 Imperial Closed End Needle Roller Bearing 5/16x1/2x7/16 inch
Regular price
$8.21
ex VAT
Regular price
Sale price
$8.21
ex VAT
Equivalent to: MJ571 BCE57
In stock
Price Break
10+
$7.31
19+
$6.90
29+
$6.81
39+
$6.73
49+
$6.65
74+
$6.57
99+
$6.16
199+
$6.08
249+
$5.99
499+
$5.91
999+
$5.75
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ571 BCE57
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 7.93mm = 0.312 (5/16) inch
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 11.11mm = 0.437 (7/16) inch
Technical
Technical
| Fw | 5/16 inch |
|---|---|
| D | 1/2 inch |
| C | 7/16 inch |
| t2 max | 1mm |
| Dynamic Load C | 3310 N |
| Static Load C0 | 3220 N |
| Weight | 4.6 g |
