SKU: BAM.2824

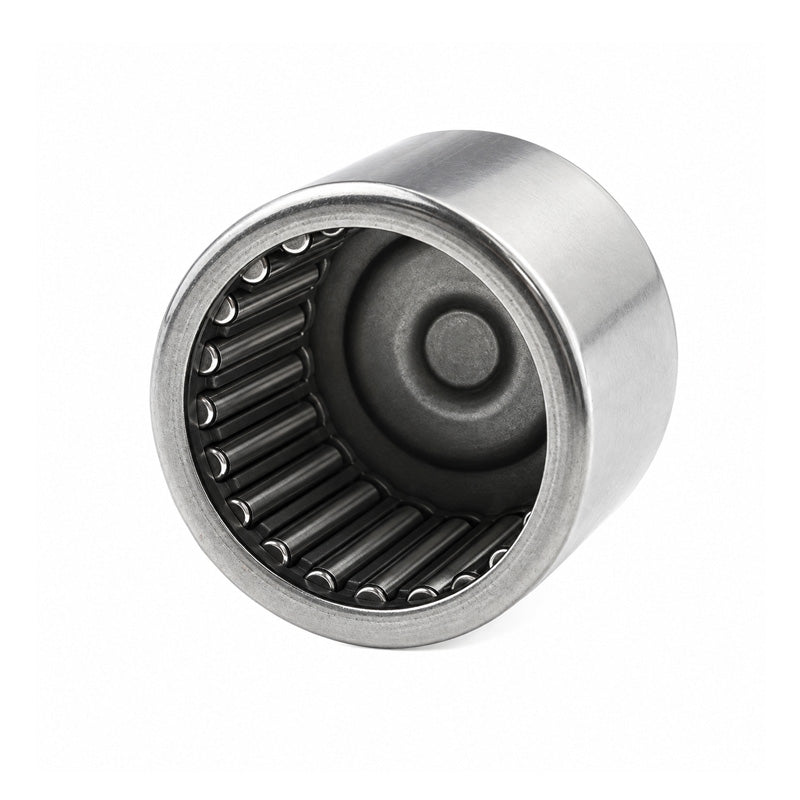

BAM2824 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x1-1/2 inch
BAM2824 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x1-1/2 inch
Regular price
$25.55
ex VAT
Regular price
Sale price
$25.55
ex VAT
Equivalent to: MJ28241 BCE2824
In stock
Price Break
10+
$22.74
19+
$21.46
29+
$21.21
39+
$20.95
49+
$20.70
74+
$20.44
99+
$19.16
199+
$18.91
249+
$18.65
499+
$18.40
999+
$17.89
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ28241 BCE2824
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Fw | 1-3/4 inch |
|---|---|
| D | 2-1/8 inch |
| C | 1-1/2 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 52000 N |
| Static Load C0 | 113000 N |
| Weight | 148 g |
