SKU: BAM.2412

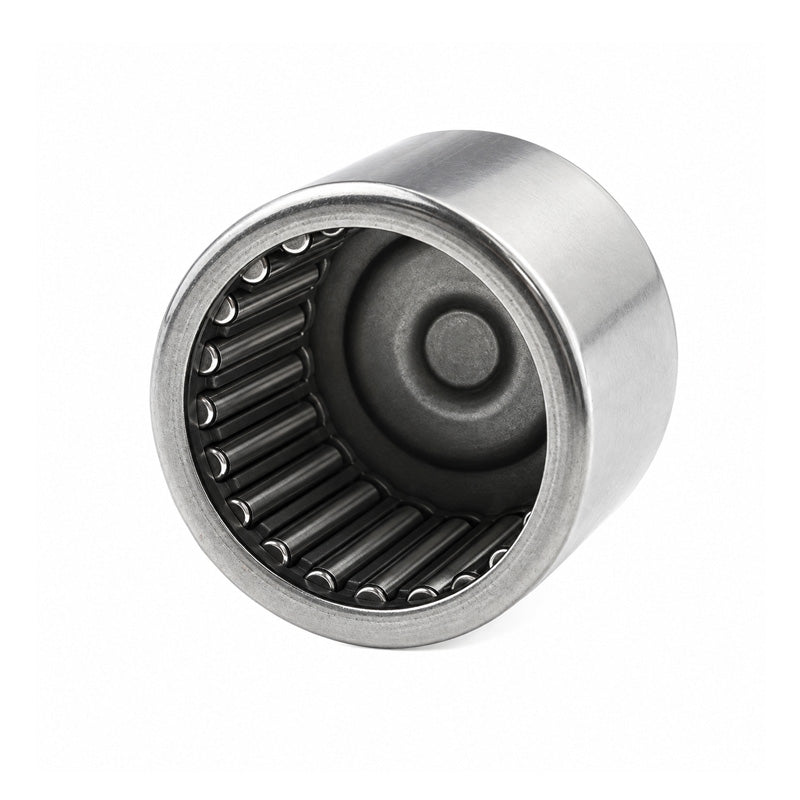

BAM2412 Imperial Closed End Needle Roller Bearing 1-1/2x1-7/8x3/4 inch
BAM2412 Imperial Closed End Needle Roller Bearing 1-1/2x1-7/8x3/4 inch
Regular price
$14.66
ex VAT
Regular price
Sale price
$14.66
ex VAT
Equivalent to: MJ24121 BCE2412
In stock
Price Break
10+
$13.05
19+
$12.31
29+
$12.17
39+
$12.02
49+
$11.87
74+
$11.73
99+
$11.00
199+
$10.85
249+
$10.70
499+
$10.56
999+
$10.26
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ24121 BCE2412
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-1/2 inch |
|---|---|
| D | 1-7/8 inch |
| C | 3/4 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 22500 N |
| Static Load C0 | 36600 N |
| Weight | 67.5 g |
