SKU: BAM.2020

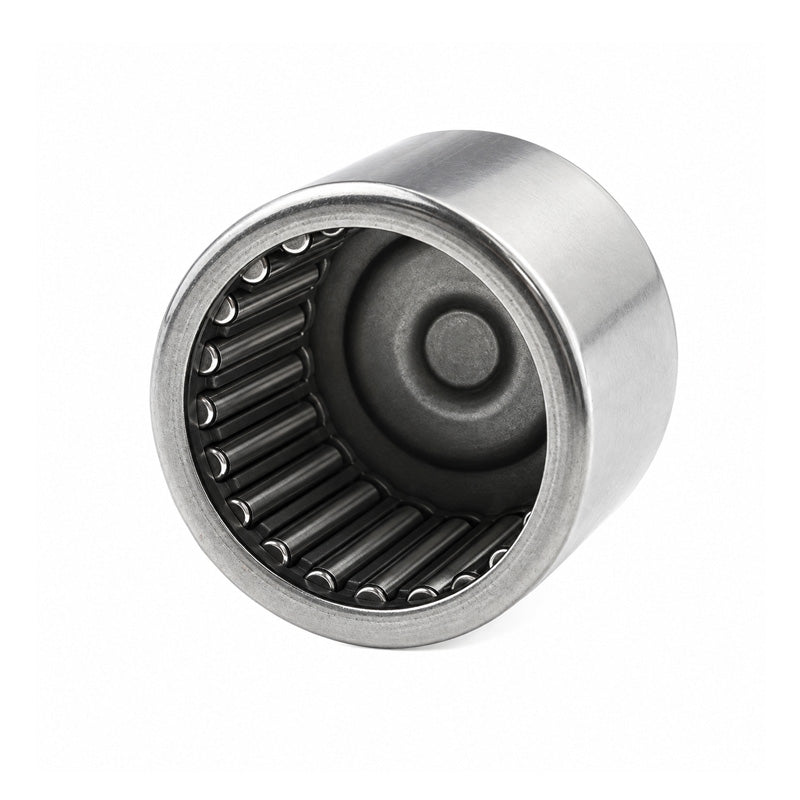

BAM2020 Imperial Closed End Needle Roller Bearing 1-1/4x1-1/2x1-1/4 inch
BAM2020 Imperial Closed End Needle Roller Bearing 1-1/4x1-1/2x1-1/4 inch
Regular price
$16.16
ex VAT
Regular price
Sale price
$16.16
ex VAT
In stock
Price Break
10+
$14.38
19+
$13.57
29+
$13.41
39+
$13.25
49+
$13.09
74+
$12.93
99+
$12.12
199+
$11.96
249+
$11.80
499+
$11.64
999+
$11.31
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-1/4 inch |
|---|---|
| D | 1-1/2 inch |
| C | 1-1/4 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 26900 N |
| Static Load C0 | 59200 N |
| Weight | 58 g |
