SKU: AXW50-EU

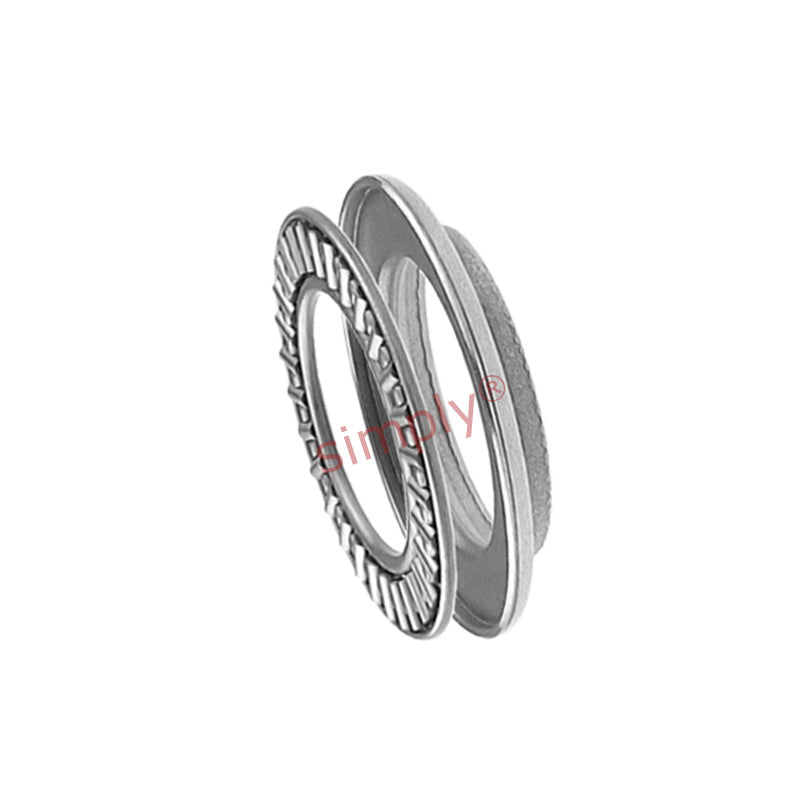

Quality Budget AXW50 Thrust Race with Centering Spigot 50x73x4.2mm
Quality Budget AXW50 Thrust Race with Centering Spigot 50x73x4.2mm
Regular price
$16.32
ex VAT
Regular price
Sale price
$16.32
ex VAT
In stock
Price Break
10+
$14.52
19+
$13.71
29+
$13.55
39+
$13.38
49+
$13.22
74+
$13.06
99+
$12.24
199+
$12.08
249+
$11.91
499+
$11.75
999+
$11.42
Couldn't load pickup availability
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 73mm
- Width:
- 4.2mm
Technical
Technical
| Inside diameter | 50mm |
|---|---|
| Outside diameter | 73mm |
| B | 4.2mm |
| B1 | 4.5mm |
| D1 | 58mm |
| Ea | 55mm |
| Eb | 68mm |
| Weight | 49 g |
| Dynamic load | 32000 N |
| Static load | 143000 N |
| Fatigue load limit | 14800 N |
| Limiting speed | 4700 rpm |
| Reference speed | 2160 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS5070">Click Here AS5070 |
