SKU: AXW45-EU

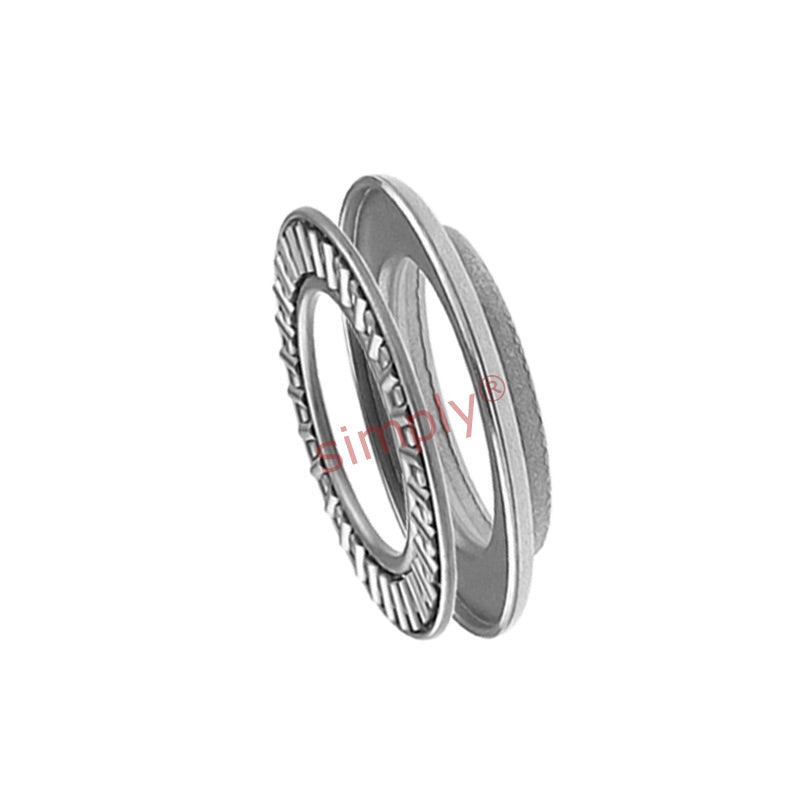

Quality Budget AXW45 Thrust Race with Centering Spigot 45x68x4.2mm
Quality Budget AXW45 Thrust Race with Centering Spigot 45x68x4.2mm
Regular price
$15.32
ex VAT
Regular price
Sale price
$15.32
ex VAT
In stock
Price Break
10+
$7.24
19+
$6.83
29+
$6.75
39+
$6.67
49+
$6.59
74+
$6.50
99+
$6.10
199+
$6.02
249+
$5.93
499+
$5.85
999+
$5.69
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 4.2mm
Technical
Technical
| Inside diameter | 45mm |
|---|---|
| Outside diameter | 68mm |
| B | 4.2mm |
| B1 | 4mm |
| D1 | 52mm |
| Ea | 50mm |
| Eb | 63mm |
| Weight | 43 g |
| Dynamic load | 30000 N |
| Static load | 128000 N |
| Fatigue load limit | 13300 N |
| Limiting speed | 5100 rpm |
| Reference speed | 2400 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS4565">Click Here AS4565 |
