SKU: AXW40-EU

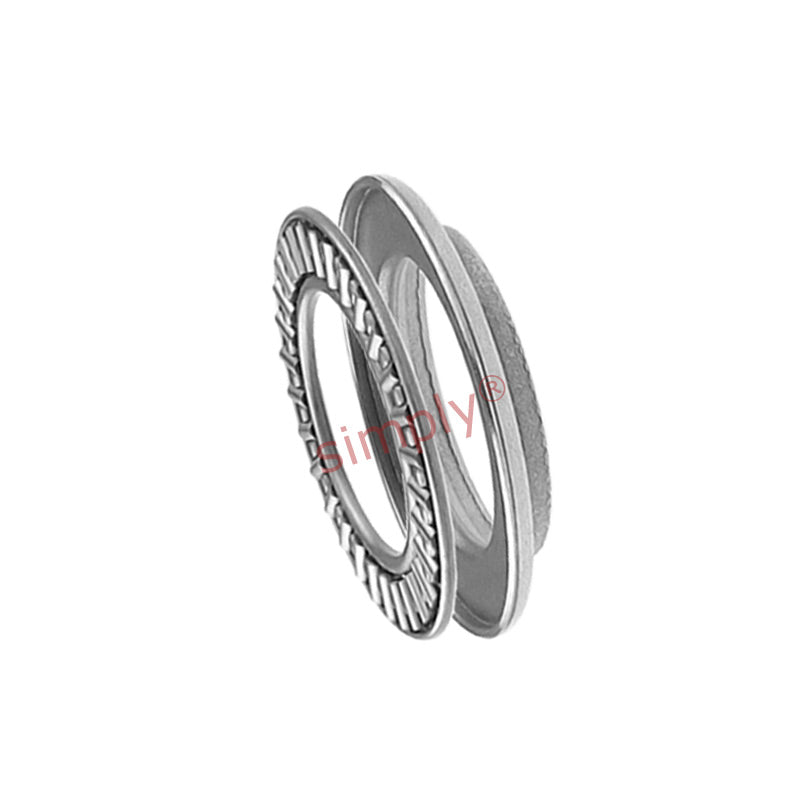

Quality Budget AXW40 Thrust Race with Centering Spigot 40x63x4.2mm
Quality Budget AXW40 Thrust Race with Centering Spigot 40x63x4.2mm
Regular price
$16.96
ex VAT
Regular price
Sale price
$16.96
ex VAT
In stock
Price Break
10+
$8.01
19+
$7.56
29+
$7.47
39+
$7.38
49+
$7.29
74+
$7.20
99+
$6.75
199+
$6.66
249+
$6.57
499+
$6.48
999+
$6.30
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 63mm
- Width:
- 4.2mm
Technical
Technical
| Inside diameter | 40mm |
|---|---|
| Outside diameter | 63mm |
| B | 4.2mm |
| B1 | 4mm |
| D1 | 47mm |
| Ea | 45mm |
| Eb | 58mm |
| Weight | 39 g |
| Dynamic load | 28000 N |
| Static load | 114000 N |
| Fatigue load limit | 11800 N |
| Limiting speed | 5600 rpm |
| Reference speed | 2700 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS4060">Click Here AS4060 |
