SKU: AXK90120-MB

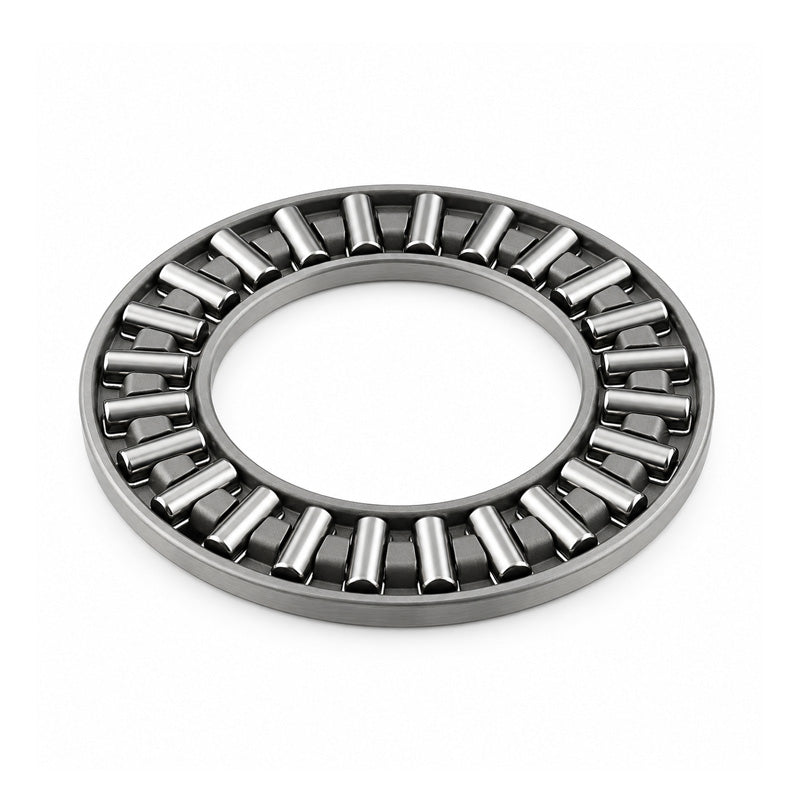

Major Brand AXK90120 Needle Roller Cage 90x120x4mm
Major Brand AXK90120 Needle Roller Cage 90x120x4mm
Regular price
$53.27
ex VAT
Regular price
Sale price
$53.27
ex VAT
In stock
Price Break
10+
$25.16
19+
$23.75
29+
$23.46
39+
$23.18
49+
$22.90
74+
$22.62
99+
$21.20
199+
$20.92
249+
$20.64
499+
$20.35
999+
$19.79
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 4mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 120mm |
| Dw | 4mm |
| Ea | 94mm |
| Eb | 118mm |
| Dynamic load | 65500 N |
| Static load | 405000 N |
| Fatigue load limit Pu | 48000 N |
| Speed in grease | 900 rpm |
| Speed in oil | 1300 rpm |
| Weight (assembly) | 86 g |
| d1 | 120mm |
| D | 120mm |
| D1 | 92mm |
| B | 6.5mm |
