SKU: AXK85110-MB

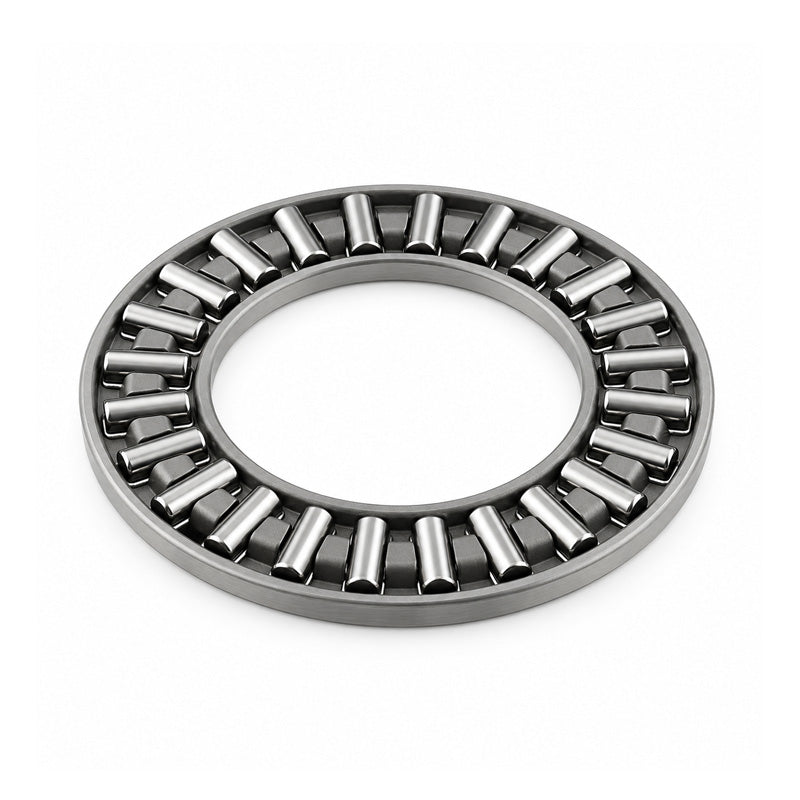

Major Brand AXK85110 Needle Roller Cage 85x110x4mm
Major Brand AXK85110 Needle Roller Cage 85x110x4mm
Regular price
$37.56
ex VAT
Regular price
Sale price
$37.56
ex VAT
In stock
Price Break
10+
$17.74
19+
$16.74
29+
$16.54
39+
$16.34
49+
$16.14
74+
$15.94
99+
$14.95
199+
$14.75
249+
$14.55
499+
$14.35
999+
$13.95
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 4mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 110mm |
| Dw | 4mm |
| Ea | 89mm |
| Eb | 108mm |
| Dynamic load | 52000 N |
| Static load | 290000 N |
| Fatigue load limit Pu | 34500 N |
| Speed in grease | 1000 rpm |
| Speed in oil | 1500 rpm |
| Weight (assembly) | 67 g |
| d1 | 110mm |
| D | 110mm |
| D1 | 87mm |
| B | 5.75mm |
