SKU: AXK75100-MB

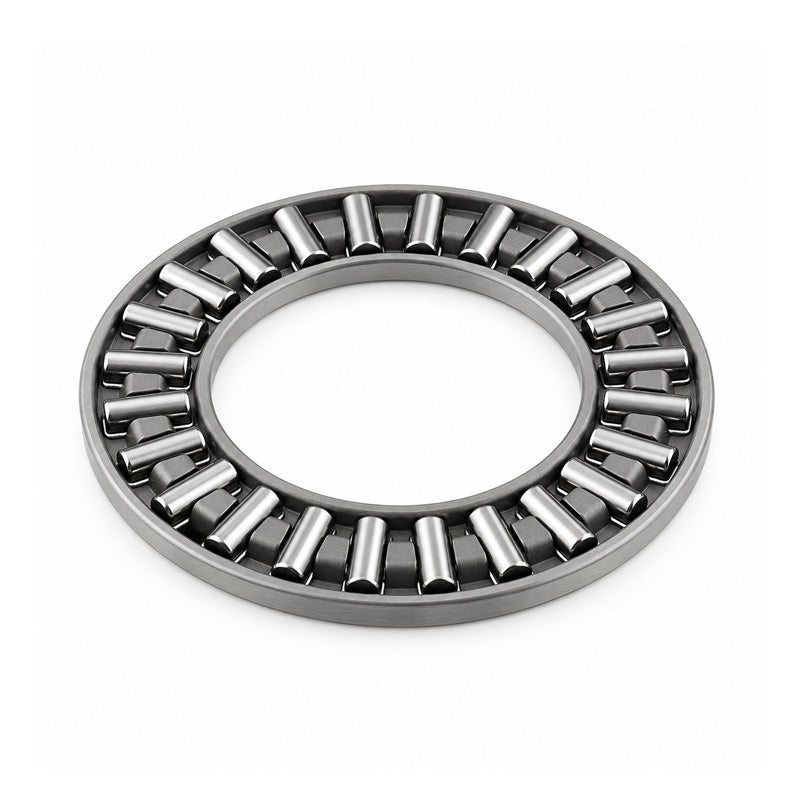

Major Brand AXK75100 Needle Roller Cage 75x100x4mm
Major Brand AXK75100 Needle Roller Cage 75x100x4mm
Regular price
$25.72
ex VAT
Regular price
Sale price
$25.72
ex VAT
In stock
Price Break
10+
$12.15
19+
$11.47
29+
$11.33
39+
$11.19
49+
$11.06
74+
$10.92
99+
$10.24
199+
$10.10
249+
$9.96
499+
$9.83
999+
$9.56
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 100mm
- Width:
- 4mm
Technical
Technical
| d | 75mm |
|---|---|
| D | 100mm |
| Dw | 4mm |
| Ea | 79mm |
| Eb | 98mm |
| Dynamic load | 50000 N |
| Static load | 265000 N |
| Fatigue load limit Pu | 32000 N |
| Speed in grease | 1100 rpm |
| Speed in oil | 1600 rpm |
| Weight (assembly) | 61 g |
| d1 | 100mm |
| D | 100mm |
| D1 | 77mm |
| B | 5.75mm |
