SKU: AXK6590-MB

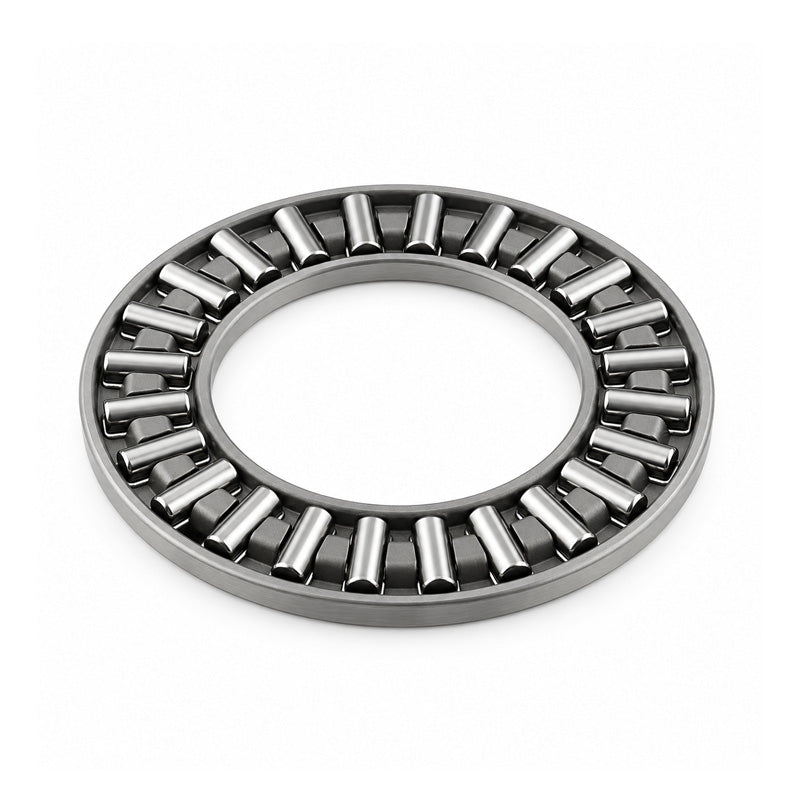

Major Brand AXK6590 Needle Roller Cage 65x90x3mm
Major Brand AXK6590 Needle Roller Cage 65x90x3mm
Regular price
$13.28
ex VAT
Regular price
Sale price
$13.28
ex VAT
In stock
Price Break
10+
$11.82
19+
$11.16
29+
$11.02
39+
$10.89
49+
$10.76
74+
$10.62
99+
$9.96
199+
$9.83
249+
$9.69
499+
$9.56
999+
$9.30
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 3mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| Dw | 3mm |
| Ea | 70mm |
| Eb | 88mm |
| Dynamic load | 39000 N |
| Static load | 255000 N |
| Fatigue load limit Pu | 31000 N |
| Speed in grease | 1200 rpm |
| Speed in oil | 1700 rpm |
| Weight (assembly) | 35 g |
| d1 | 90mm |
| D | 90mm |
| D1 | 67mm |
| B | 5.25mm |
