SKU: AXK6085-MB-AS6085-MB

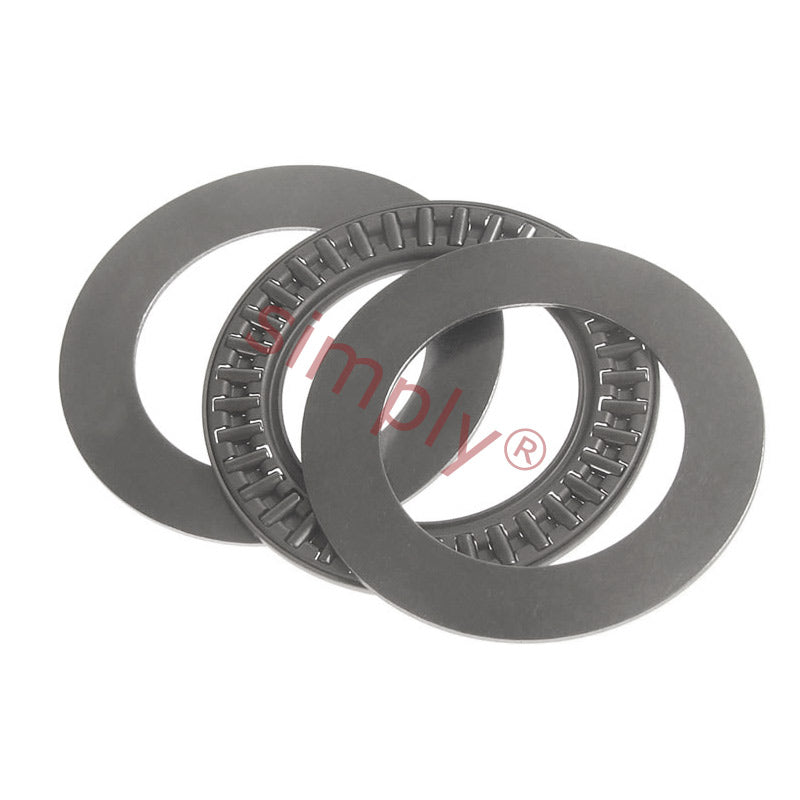

Major Brand AXK6085 Needle Roller Cage with 2 AS6085 Washers 60x85x5mm
Major Brand AXK6085 Needle Roller Cage with 2 AS6085 Washers 60x85x5mm
Regular price
$16.51
ex VAT
Regular price
Sale price
$16.51
ex VAT
In stock
Price Break
10+
$7.80
19+
$7.36
29+
$7.27
39+
$7.18
49+
$7.10
74+
$7.01
99+
$6.57
199+
$6.48
249+
$6.39
499+
$6.31
999+
$6.13
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 5mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| Dw | 5mm total (2 washers at 1mm each) |
| Ea | 65mm |
| Eb | 83mm |
| Dynamic load | 37500 N |
| Static load | 232000 N |
| Fatigue load limit Pu | 28500 N |
| Speed in grease | 1300 rpm |
| Speed in oil | 1800 rpm |
| Weight (assembly) | 33 g |
| d1 | 85mm |
| D | 85mm |
| D1 | 62mm |
| B | 4.75mm |
