SKU: AXK2542-MB

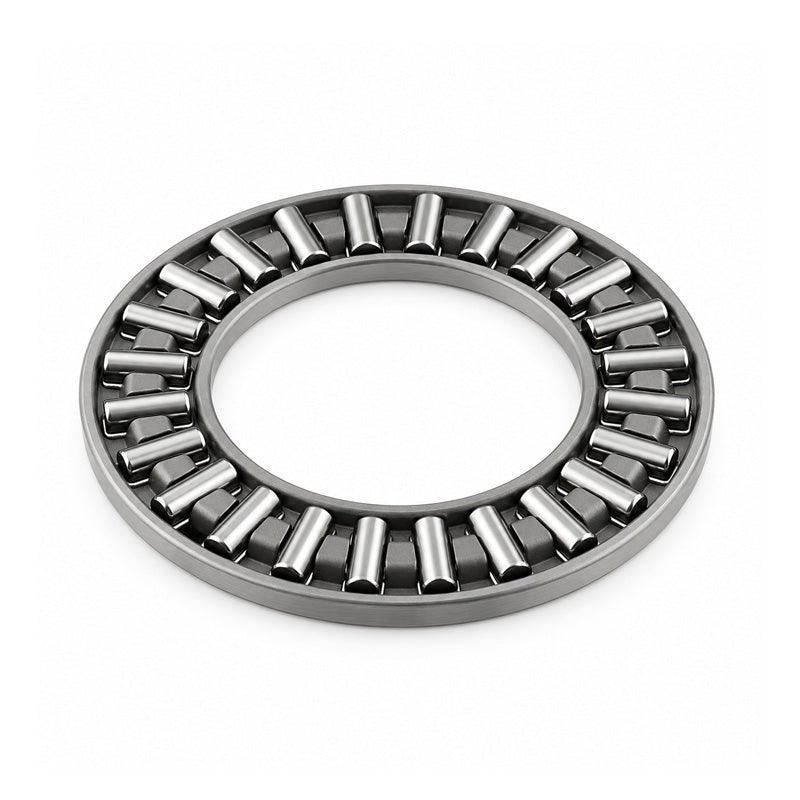

Major Brand AXK2542 Needle Roller Cage 25x42x2mm
Major Brand AXK2542 Needle Roller Cage 25x42x2mm
Regular price
$5.78
ex VAT
Regular price
Sale price
$5.78
ex VAT
In stock
Price Break
10+
$5.14
19+
$4.86
29+
$4.80
39+
$4.74
49+
$4.68
74+
$4.62
99+
$4.34
199+
$4.28
249+
$4.22
499+
$4.16
999+
$4.05
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 2mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| Dw | 2mm |
| Ea | 29mm |
| Eb | 41mm |
| Dynamic load | 13400 N |
| Static load | 60000 N |
| Fatigue load limit Pu | 6700 N |
| Speed in grease | 2200 rpm |
| Speed in oil | 3200 rpm |
| Weight (assembly) | 7 g |
| d1 | 42mm |
| D | 42mm |
| D1 | 26mm |
| B | 3mm |
