SKU: AXK150190-MB

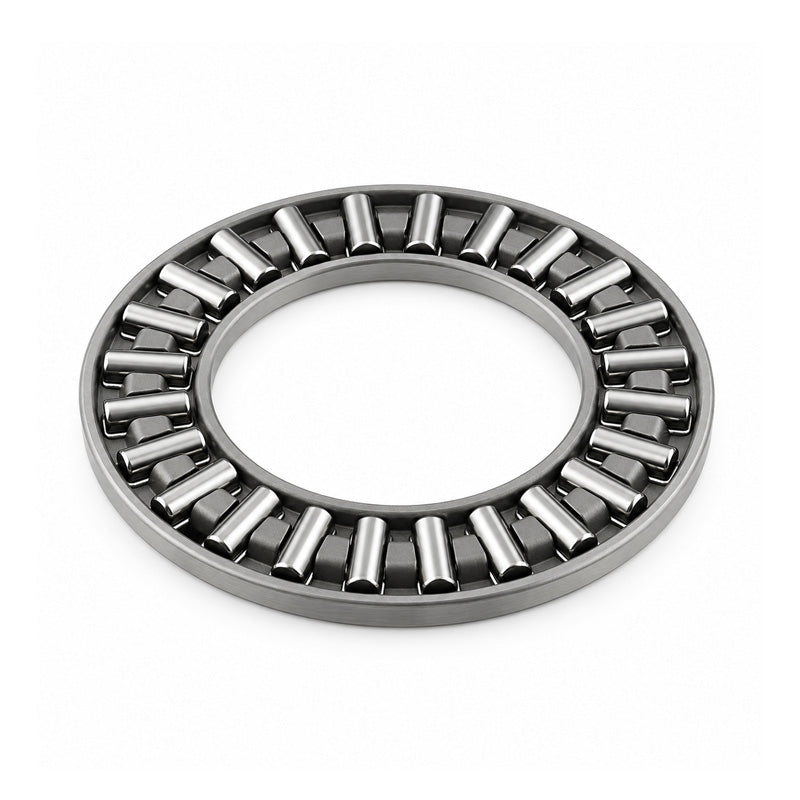

Major Brand AXK150190 Needle Roller Cage 150x190x5mm
Major Brand AXK150190 Needle Roller Cage 150x190x5mm
Regular price
$287.15
ex VAT
Regular price
Sale price
$287.15
ex VAT
In stock
Price Break
10+
$255.56
19+
$241.21
29+
$238.33
39+
$235.46
49+
$232.59
74+
$229.72
99+
$215.36
199+
$212.49
249+
$209.62
499+
$206.75
999+
$201.01
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 5mm
Technical
Technical
| d | 150mm |
|---|---|
| D | 190mm |
| Dw | 5mm |
| Ea | 156mm |
| Eb | 187mm |
| Dynamic load | 120000 N |
| Static load | 950000 N |
| Fatigue load limit Pu | 102000 N |
| Speed in grease | 630 rpm |
| Speed in oil | 850 rpm |
| Weight (assembly) | 230 g |
| d1 | 188mm |
| D | 190mm |
| D1 | 152mm |
| B | 9.5mm |
