SKU: AXK120155-MB

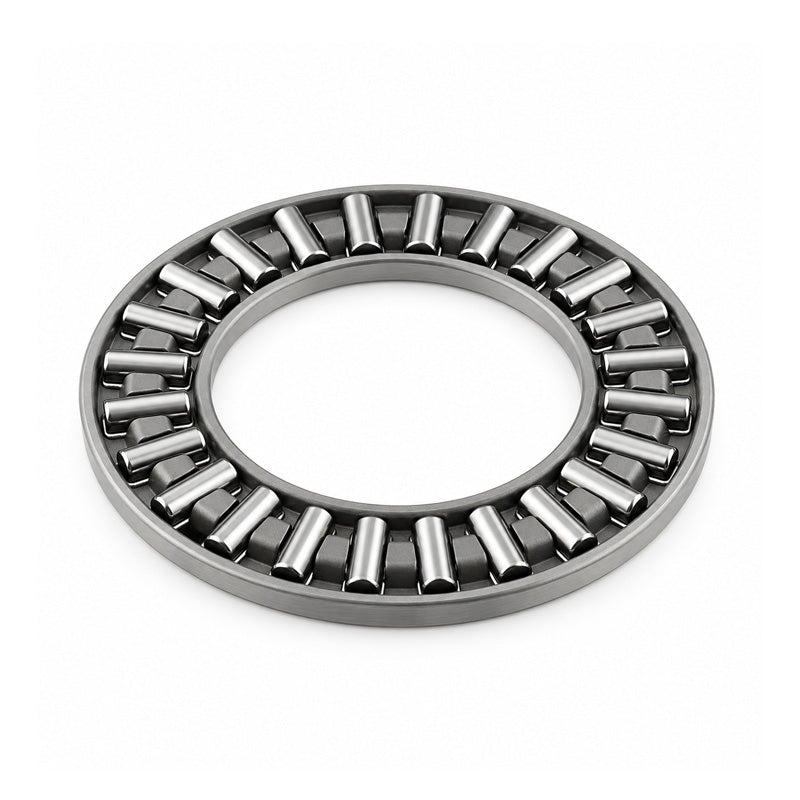

Major Brand AXK120155 Needle Roller Cage 120x155x4mm
Major Brand AXK120155 Needle Roller Cage 120x155x4mm
Regular price
$82.78
ex VAT
Regular price
Sale price
$82.78
ex VAT
In stock
Price Break
10+
$39.10
19+
$36.90
29+
$36.46
39+
$36.02
49+
$35.58
74+
$35.14
99+
$32.95
199+
$32.51
249+
$32.07
499+
$31.63
999+
$30.75
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 155mm
- Width:
- 4mm
Technical
Technical
| d | 120mm |
|---|---|
| D | 155mm |
| Dw | 4mm |
| Ea | 125mm |
| Eb | 153mm |
| Dynamic load | 86500 N |
| Static load | 680000 N |
| Fatigue load limit Pu | 76500 N |
| Speed in grease | 800 rpm |
| Speed in oil | 1100 rpm |
| Weight (assembly) | 130 g |
| d1 | 145mm |
| D | 155mm |
| D1 | 122mm |
| B | 7mm |
