SKU: AXK110145-MB

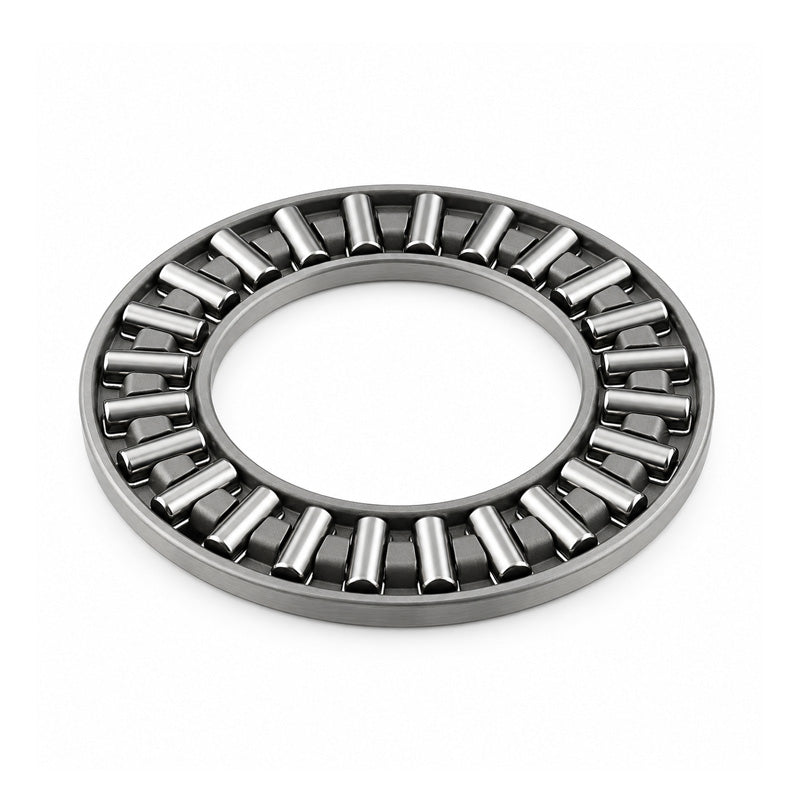

Major Brand AXK110145 Needle Roller Cage 110x145x4mm
Major Brand AXK110145 Needle Roller Cage 110x145x4mm
Regular price
$60.93
ex VAT
Regular price
Sale price
$60.93
ex VAT
In stock
Price Break
10+
$28.77
19+
$27.16
29+
$26.83
39+
$26.51
49+
$26.19
74+
$25.86
99+
$24.25
199+
$23.92
249+
$23.60
499+
$23.28
999+
$22.63
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 145mm
- Width:
- 4mm
Technical
Technical
| d | 110mm |
|---|---|
| D | 145mm |
| Dw | 4mm |
| Ea | 115mm |
| Eb | 143mm |
| Dynamic load | 81500 N |
| Static load | 620000 N |
| Fatigue load limit Pu | 71000 N |
| Speed in grease | 800 rpm |
| Speed in oil | 1100 rpm |
| Weight (assembly) | 120 g |
| d1 | 145mm |
| D | 145mm |
| D1 | 112mm |
| B | 7mm |
