SKU: AX54060-MB

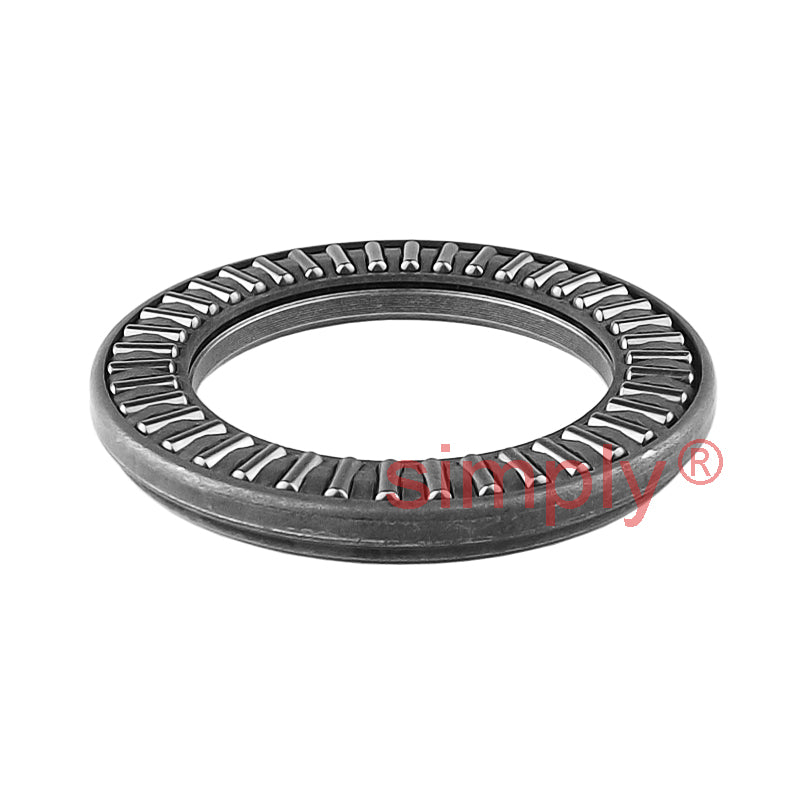

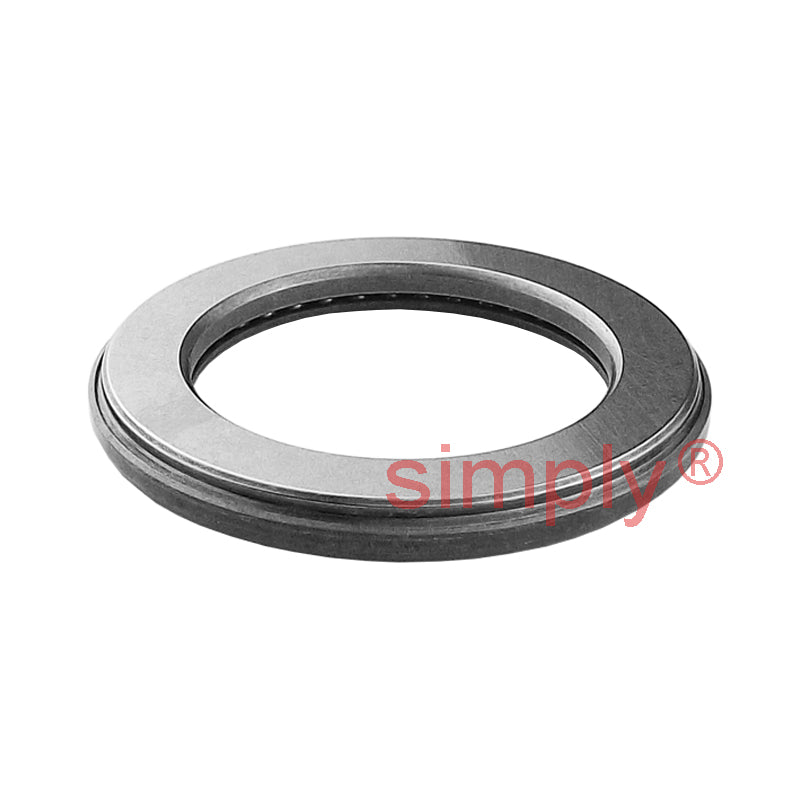

Major Brand AX54060 Thick Needle Roller Thrust Bearing 40x60x5mm Allow 2-3 Days
Major Brand AX54060 Thick Needle Roller Thrust Bearing 40x60x5mm Allow 2-3 Days
Regular price
$77.23
ex VAT
Regular price
Sale price
$77.23
ex VAT
In stock
Price Break
10+
$36.47
19+
$34.42
29+
$34.01
39+
$33.60
49+
$33.19
74+
$32.78
99+
$30.74
199+
$30.33
249+
$29.92
499+
$29.51
999+
$28.69
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 60mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 40mm |
|---|---|
| D | 60mm |
| B1 | 5mm |
| Eb | 43mm |
| Ea | 54.9mm |
| Dynamic load | 20.4 kN |
| Static load | 96 kN |
| Speed rating in oil | 5000 rpm |
| Mass | 0.046 kg |
