SKU: AX52542-MB

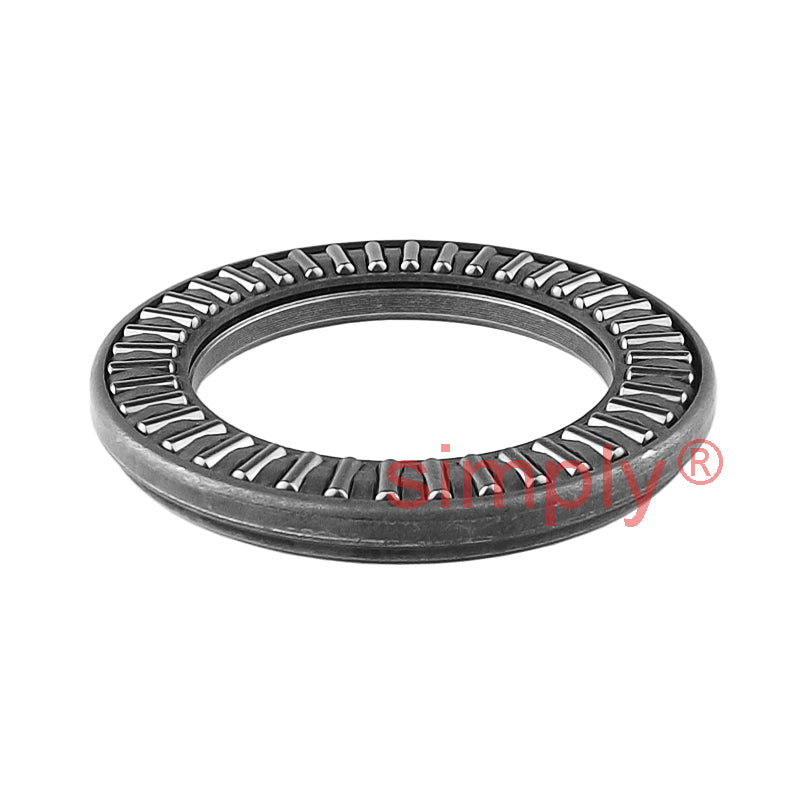

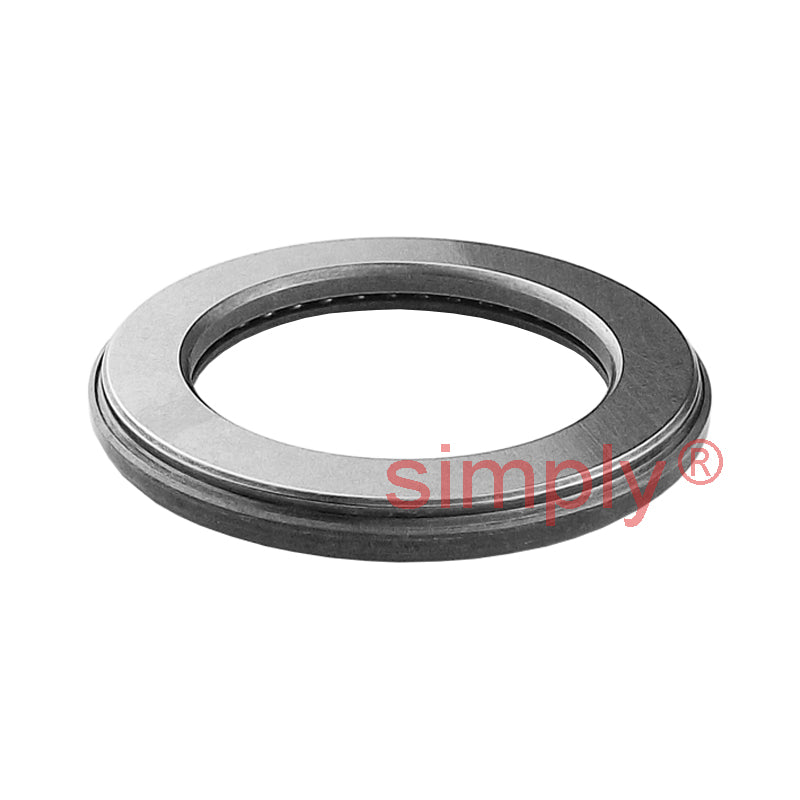

Major Brand AX52542 Thick Needle Roller Thrust Bearing 25x42x5mm
Major Brand AX52542 Thick Needle Roller Thrust Bearing 25x42x5mm
Regular price
$35.57
ex VAT
Regular price
Sale price
$35.57
ex VAT
In stock
Price Break
10+
$31.66
19+
$29.88
29+
$29.52
39+
$29.17
49+
$28.81
74+
$28.46
99+
$26.68
199+
$26.32
249+
$25.97
499+
$25.61
999+
$24.90
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 25mm |
|---|---|
| D | 42mm |
| B1 | 5mm |
| Eb | 27.7mm |
| Ea | 37.4mm |
| Dynamic load | 13.3 kN |
| Static load | 49 kN |
| Speed rating in oil | 7500 rpm |
| Mass | 0.025 kg |
