SKU: AX4565-MB

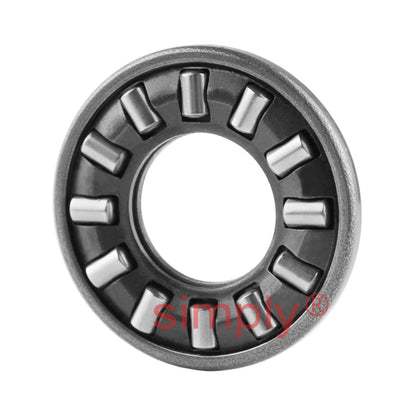

Major Brand AX4565 Thin Needle Roller Thrust Bearing 45x65x2.8mm
Major Brand AX4565 Thin Needle Roller Thrust Bearing 45x65x2.8mm
Regular price
$45.45
ex VAT
Regular price
Sale price
$45.45
ex VAT
In stock
Price Break
10+
$21.47
19+
$20.26
29+
$20.02
39+
$19.78
49+
$19.54
74+
$19.30
99+
$18.09
199+
$17.85
249+
$17.61
499+
$17.37
999+
$16.88
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 65mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 45mm |
|---|---|
| D | 65mm |
| B1 | 2.8mm |
| Eb | 48mm |
| Ea | 59.9mm |
| Dynamic load | 21.8 kN |
| Static load | 109 kN |
| Speed rating in oil | 4500 rpm |
| Mass | 0.025 kg |
