SKU: AX41528-MB

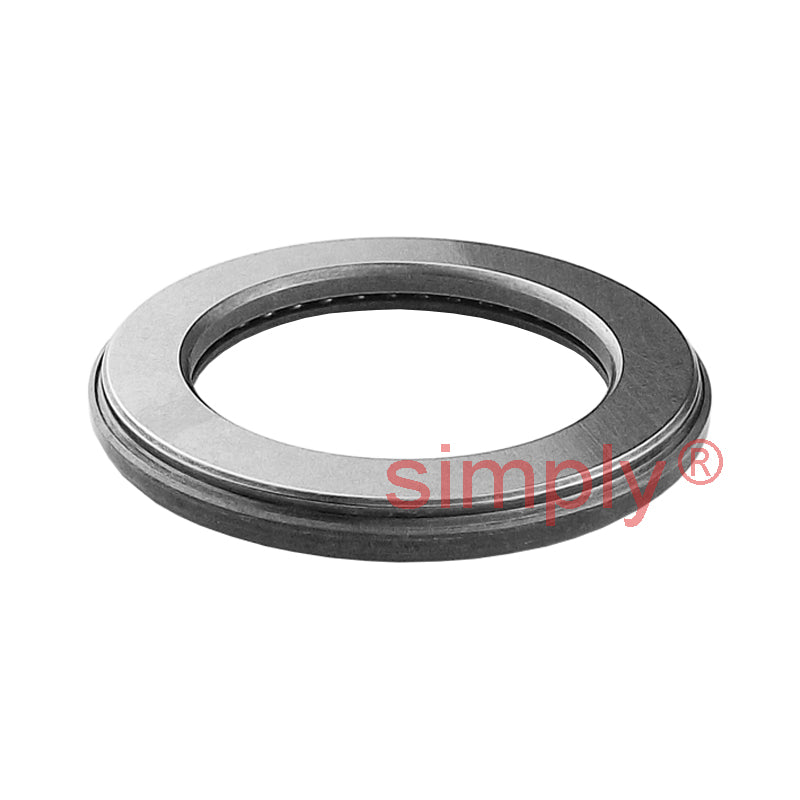

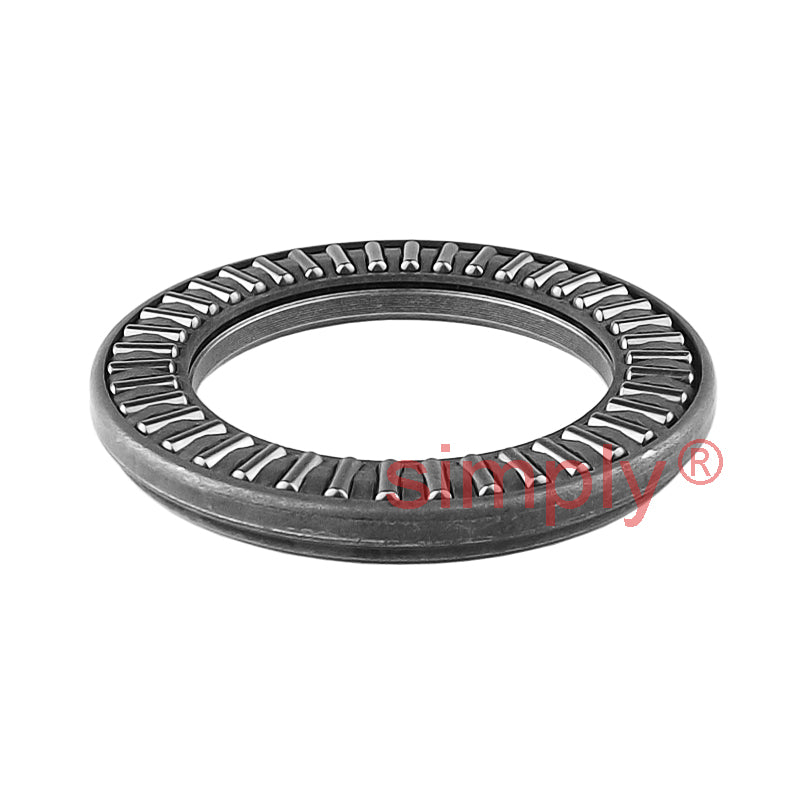

Major Brand AX41528 Thick Needle Roller Thrust Bearing 15x28x4mm Allow 2-3 Days
Major Brand AX41528 Thick Needle Roller Thrust Bearing 15x28x4mm Allow 2-3 Days
Regular price
$52.26
ex VAT
Regular price
Sale price
$52.26
ex VAT
In stock
Price Break
10+
$24.68
19+
$23.29
29+
$23.02
39+
$22.74
49+
$22.46
74+
$22.18
99+
$20.80
199+
$20.52
249+
$20.24
499+
$19.97
999+
$19.41
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 4mm
Technical
Technical
| Dc1 | 15mm |
|---|---|
| D | 28mm |
| B1 | 4mm |
| Eb | 17mm |
| Ea | 24.6mm |
| Dynamic load | 7.4 kN |
| Static load | 20 kN |
| Speed rating in oil | 11500 rpm |
| Mass | 0.009 kg |
