SKU: AX4.5100135-MB

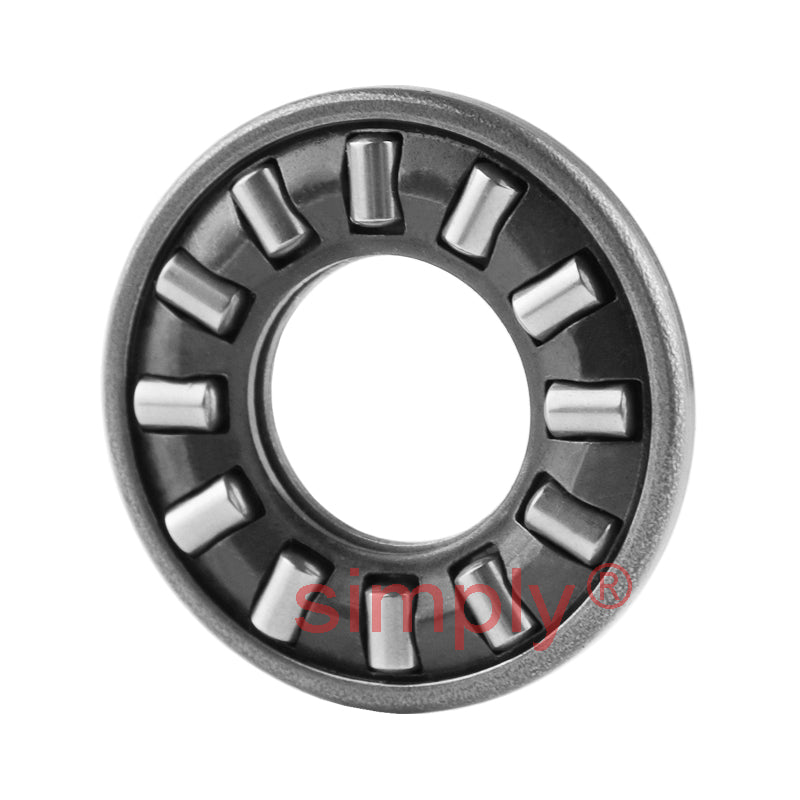

Major Brand AX4.5100135 Thin Needle Roller Thrust Bearing 100x135x4.5mm - Allow 2-3 Days
Major Brand AX4.5100135 Thin Needle Roller Thrust Bearing 100x135x4.5mm - Allow 2-3 Days
Regular price
$250.50
ex VAT
Regular price
Sale price
$250.50
ex VAT
In stock
Price Break
10+
$131.60
19+
$126.28
29+
$123.62
39+
$119.64
49+
$116.98
74+
$110.33
99+
$93.05
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 4.5mm
Technical
Technical
| Dc1 | 100mm |
|---|---|
| D | 135mm |
| B1 | 4.5mm |
| Eb | 104.2mm |
| Ea | 127.3mm |
| Dynamic load | 73 kN |
| Static load | 490 kN |
| Speed rating in oil | 2100 rpm |
| Mass | 0.155 kg |
