SKU: AX2744-MB

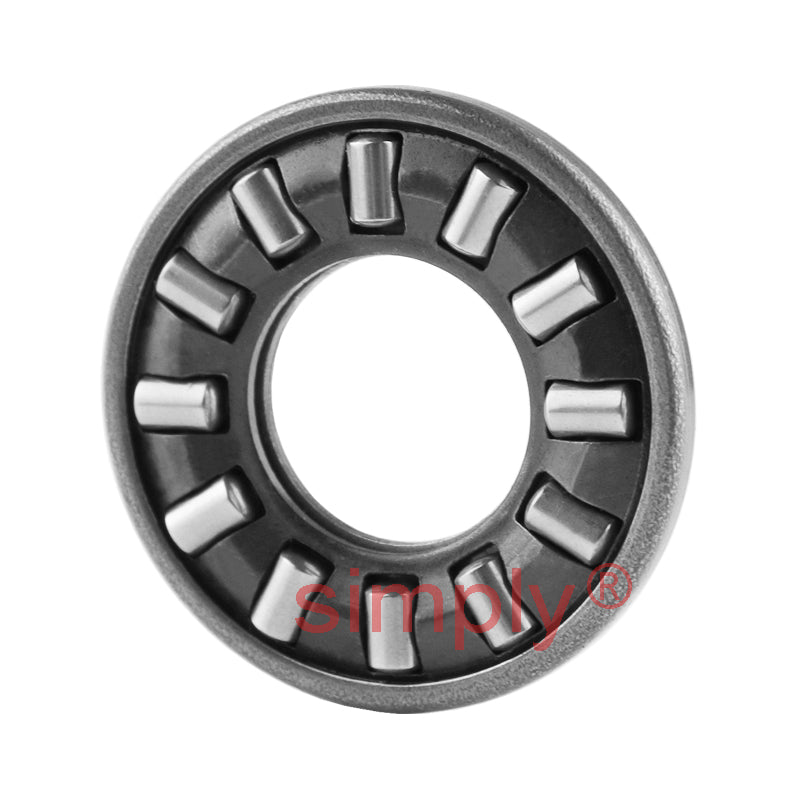

Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm
Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm
Regular price
$24.12
ex VAT
Regular price
Sale price
$24.12
ex VAT
In stock
Price Break
10+
$11.39
19+
$10.75
29+
$10.62
39+
$10.50
49+
$10.37
74+
$10.24
99+
$9.60
199+
$9.47
249+
$9.34
499+
$9.22
999+
$8.96
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 27mm
- Outside Diameter:
- 44mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 27mm |
|---|---|
| D | 44mm |
| B1 | 2.8mm |
| Eb | 30mm |
| Ea | 39.6mm |
| Dynamic load | 13.7 kN |
| Static load | 52 kN |
| Speed rating in oil | 7200 rpm |
| Mass | 0.012 kg |
