SKU: AX2542-MB

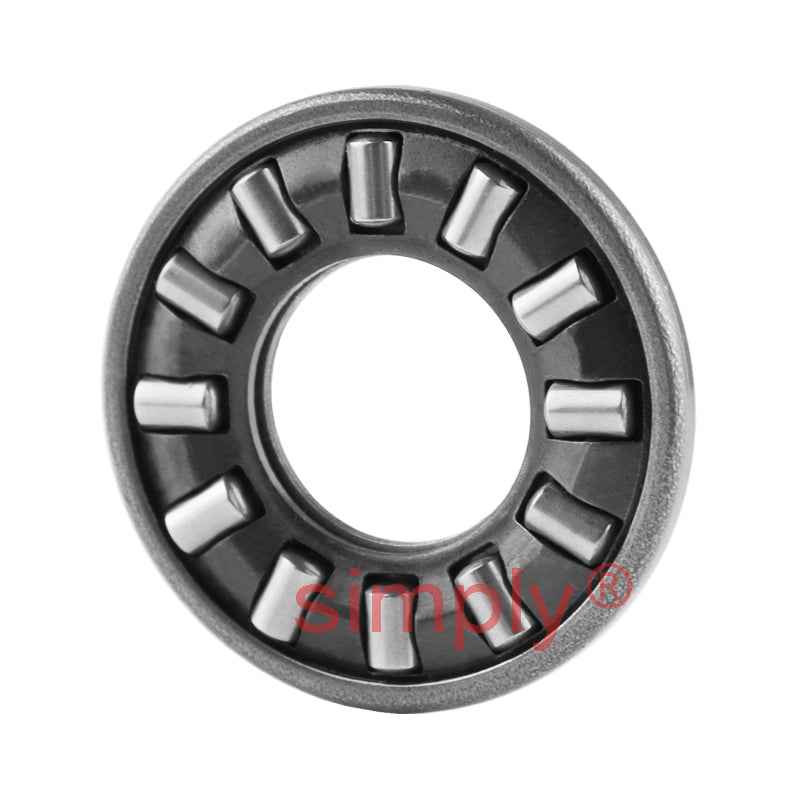

Major Brand AX2542 Thin Needle Roller Thrust Bearing 25x42x2.8mm
Major Brand AX2542 Thin Needle Roller Thrust Bearing 25x42x2.8mm
Regular price
$29.20
ex VAT
Regular price
Sale price
$29.20
ex VAT
In stock
Price Break
10+
$25.99
19+
$24.53
29+
$24.24
39+
$23.94
49+
$23.65
74+
$23.36
99+
$21.90
199+
$21.61
249+
$21.32
499+
$21.02
999+
$20.44
Couldn't load pickup availability
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 25mm |
|---|---|
| D | 42mm |
| B1 | 2.8mm |
| Eb | 27.7mm |
| Ea | 37.4mm |
| Dynamic load | 13.3 kN |
| Static load | 49 kN |
| Speed rating in oil | 7500 rpm |
| Mass | 0.012 kg |
