SKU: AX15240300-MB

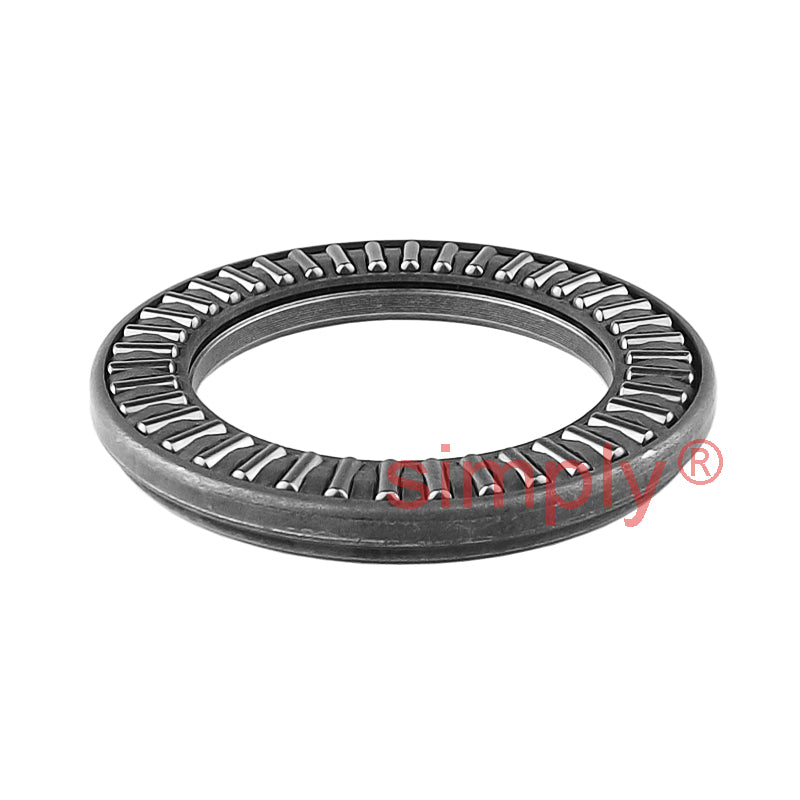

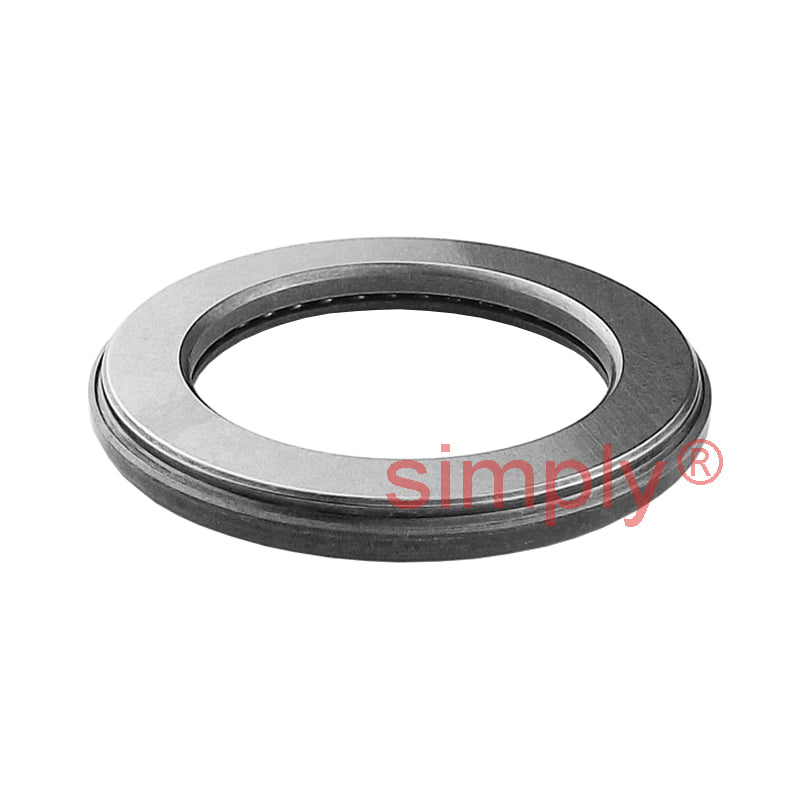

Major Brand AX15240300 Thick Needle Roller Thrust Bearing 240x300x15mm Allow 2-3 Days
Major Brand AX15240300 Thick Needle Roller Thrust Bearing 240x300x15mm Allow 2-3 Days
Regular price
$11,041.41
ex VAT
Regular price
Sale price
$11,041.41
ex VAT
In stock
Price Break
10+
$5,214.65
19+
$4,921.69
29+
$4,863.10
39+
$4,804.51
49+
$4,745.91
74+
$4,687.32
99+
$4,394.37
199+
$4,335.77
249+
$4,277.18
499+
$4,218.59
999+
$4,101.41
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 240mm
- Outside Diameter:
- 300mm
- Width:
- 15mm
Technical
Technical
| Dc1 | 240mm |
|---|---|
| D | 300mm |
| B1 | 15mm |
| Eb | 246mm |
| Ea | 286mm |
| Dynamic load | 280 kN |
| Static load | 2240 kN |
| Speed rating in oil | 900 rpm |
| Mass | 2.3 kg |
