SKU: ASFD206-NTN

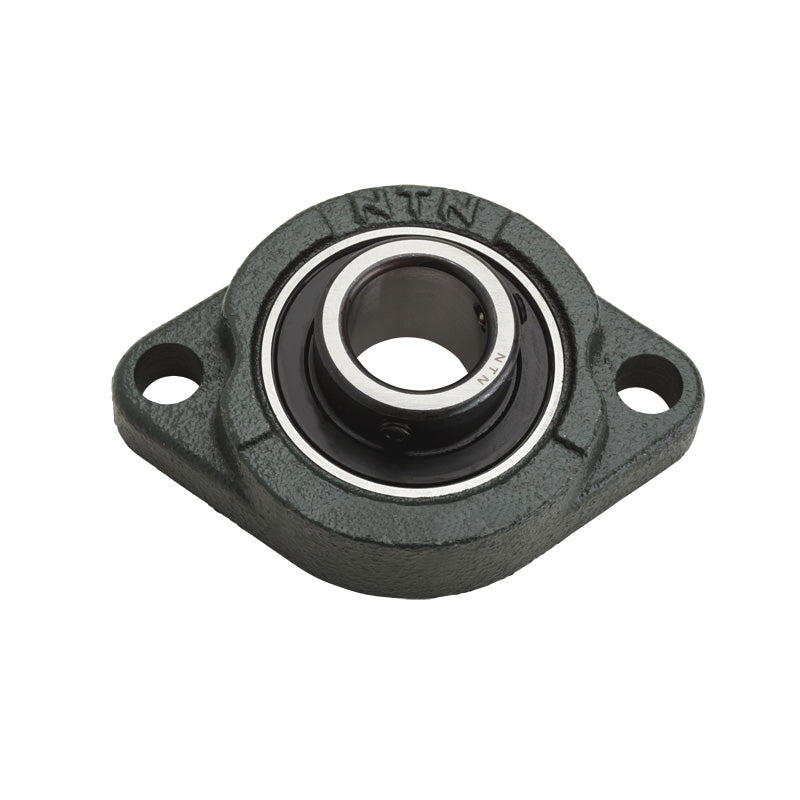

NTN ASFD206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
NTN ASFD206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
$58.93
ex VAT
Regular price
Sale price
$58.93
ex VAT
In stock
Price Break
10+
$52.45
19+
$49.50
29+
$48.91
39+
$48.32
49+
$47.73
74+
$47.14
99+
$44.20
199+
$43.61
249+
$43.02
499+
$42.43
999+
$41.25
Couldn't load pickup availability
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- ASFD
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H | 113mm |
| J | 90mm |
| A<sub>2</sub> | 12mm |
| A | 21mm |
| N | 12mm |
| L | 84mm |
| A<sub>0</sub> | 33mm |
| B | 29mm |
| S | 8mm |
| Fixing bolt | M10 |
| Mass | 0.8 kg |
