SKU: ASFD202-NTN

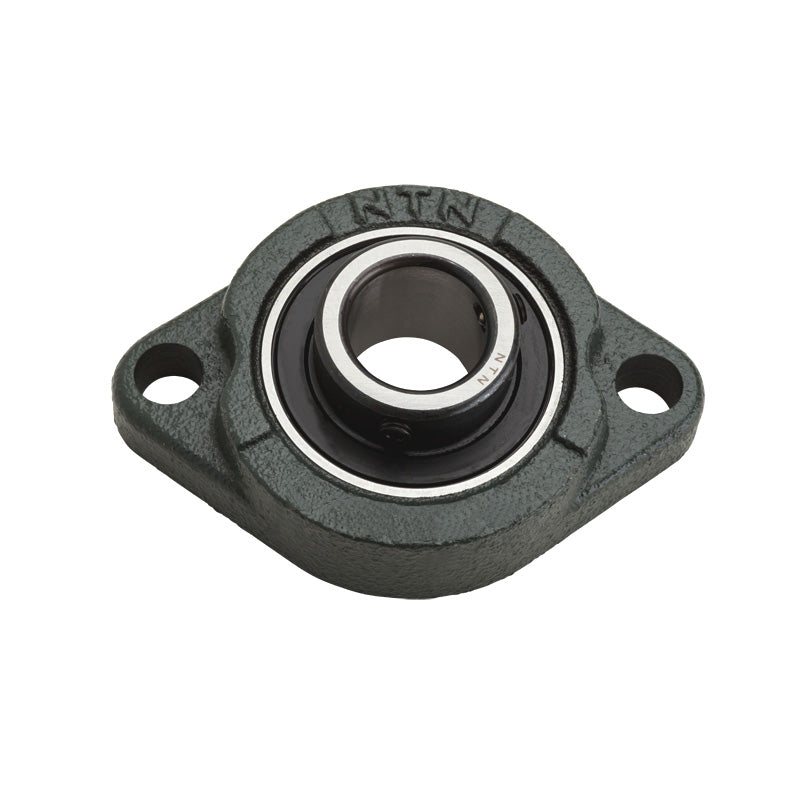

NTN ASFD202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
NTN ASFD202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
Regular price
$43.43
ex VAT
Regular price
Sale price
$43.43
ex VAT
In stock
Price Break
10+
$38.65
19+
$36.48
29+
$36.05
39+
$35.61
49+
$35.18
74+
$34.74
99+
$32.57
199+
$32.14
249+
$31.70
499+
$31.27
999+
$30.40
Couldn't load pickup availability
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Style:
- ASFD
- Bolt Hole Centres:
- 63mm
Technical
Technical
| Shaft diameter | 15mm |
|---|---|
| H | 81mm |
| J | 63mm |
| A<sub>2</sub> | 8.5mm |
| A | 15mm |
| N | 7mm |
| L | 59mm |
| A<sub>0</sub> | 24.5mm |
| B | 22mm |
| S | 6mm |
| Fixing bolt | M6 |
| Mass | 0.3 kg |
