SKU: AS85110-MB

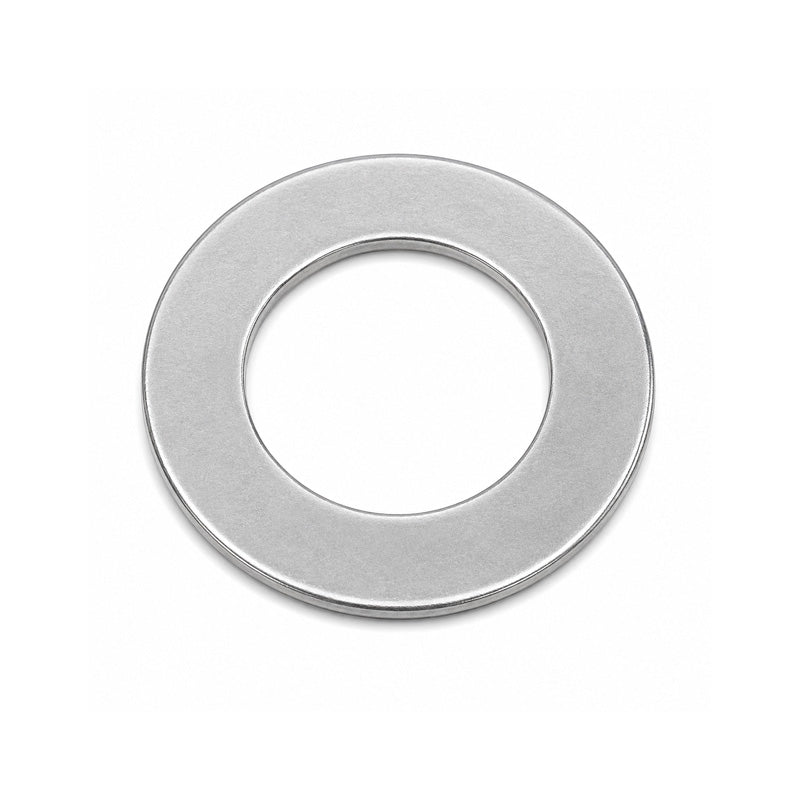

Major Brand AS85110 Thrust Washer Series AS 85x110x1mm
Major Brand AS85110 Thrust Washer Series AS 85x110x1mm
Regular price
$18.28
ex VAT
Regular price
Sale price
$18.28
ex VAT
In stock
Price Break
10+
$8.64
19+
$8.15
29+
$8.06
39+
$7.96
49+
$7.86
74+
$7.76
99+
$7.28
199+
$7.18
249+
$7.08
499+
$6.99
999+
$6.79
Description
Description
|
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 1mm
Technical
Technical
| d | 85mm |
|---|---|
| d1 | 110mm |
| D | 110mm |
| D1 | 87mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 160 g |
